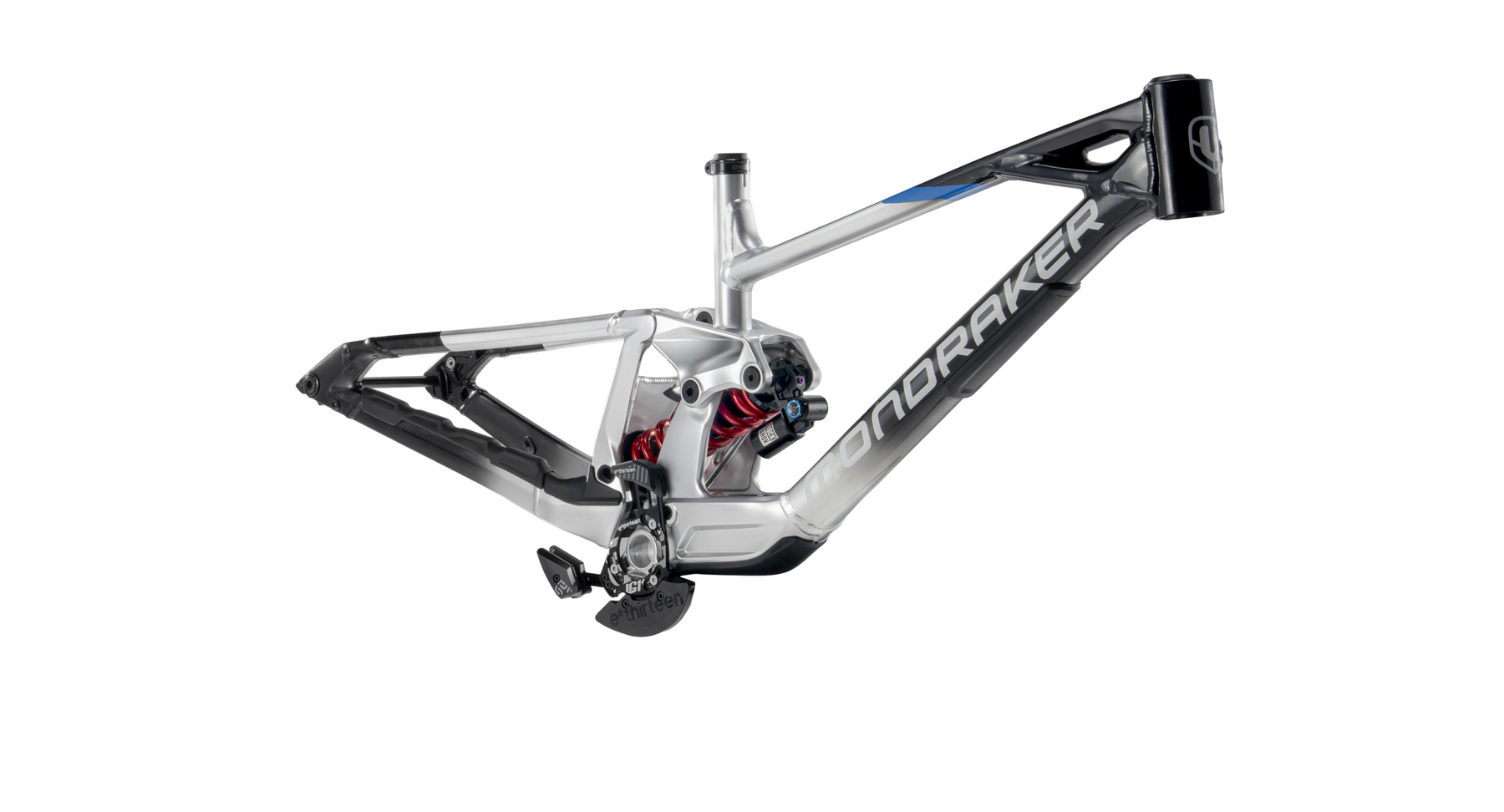

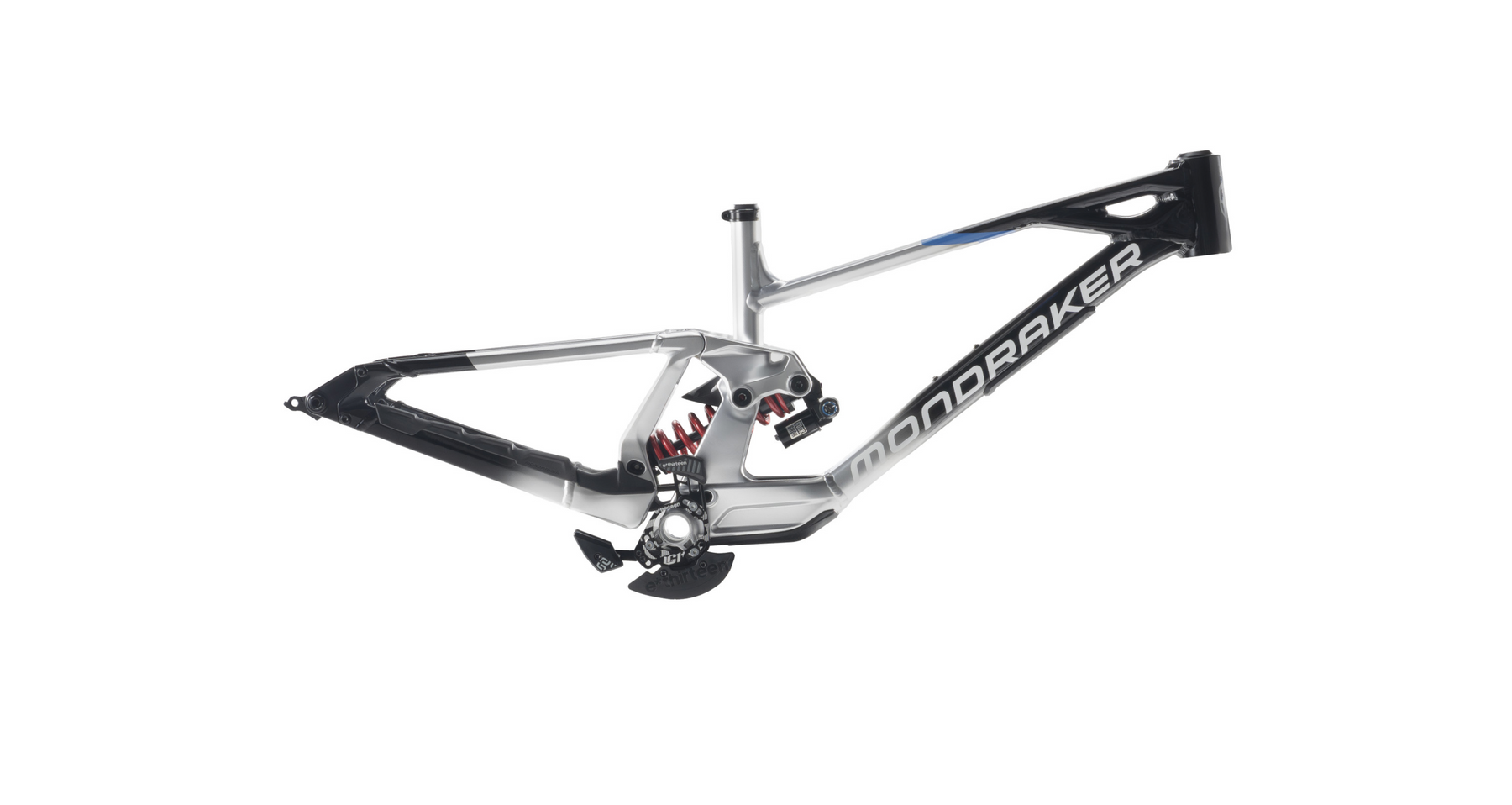

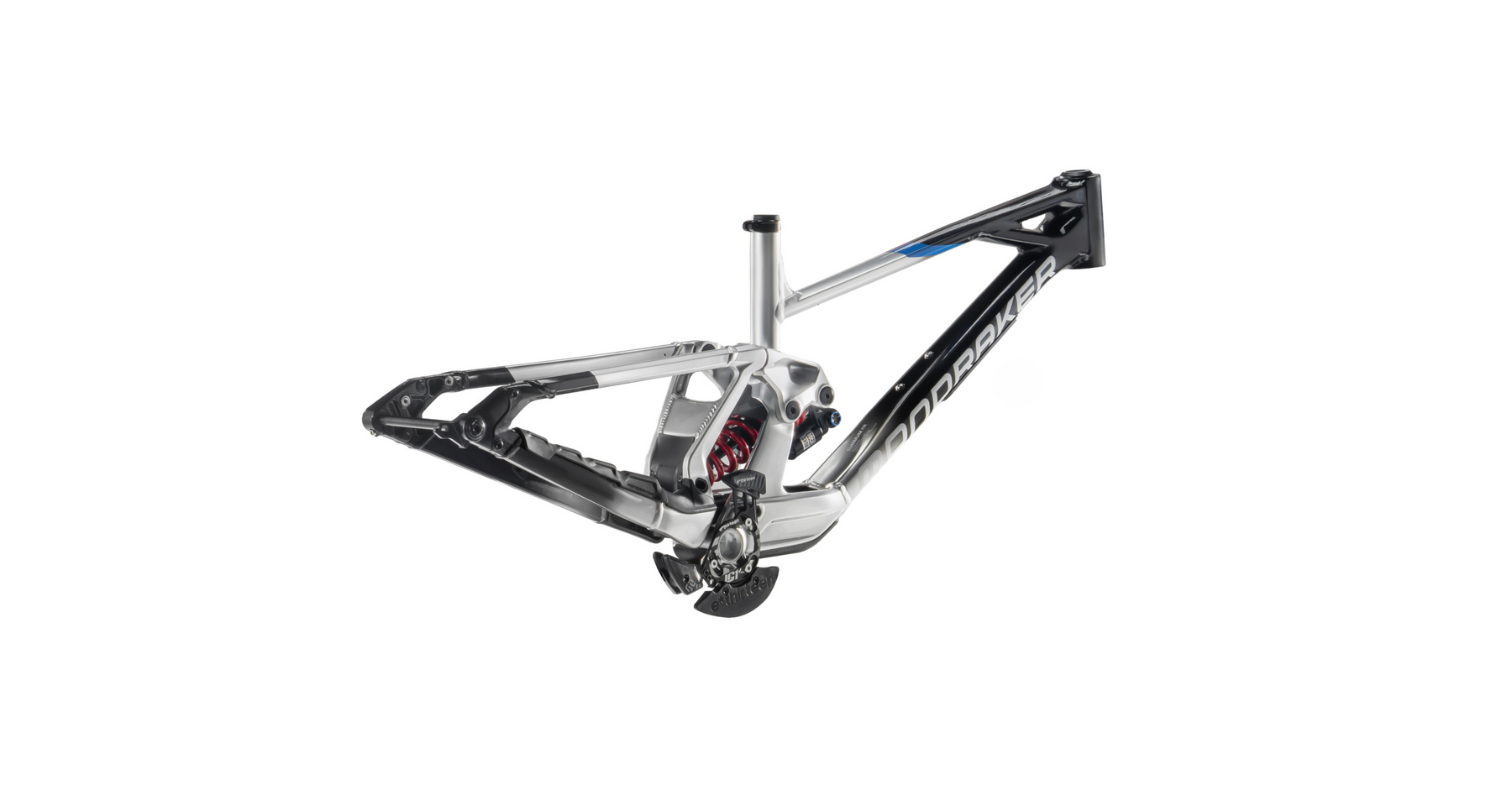

| Frame | Summum MX 6061 Alloy Stealth Evo, Mullet, hydroformed tubing, Updated Zero Suspension System, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, 12x157mm rear axle, UDH, 83mm BSA bottom bracket, MAX. capacity dual row Enduro bearings, HHG internal cable routing, ISCG 05 |
| Size | M |
| Rear Shock | Rock Shox Vivid Coil Ultimate, 225x75mm, Linear rebound, Medium compression, spring preload. Trunnion top mount, 30x8mm bottom bushings |
| Shock Settings | Medium compression, linear rebound. R55 C40. Spring rate: M size 450 lbs, L size 500 lbs, XL size 550 lbs |
| Headset | Onoff DH ARS (Adjustable Reach System) 1-1/8", 1-1/8" steerer tube, 41x30x7 45ºx45º sealed bearings, reach geometry kit cups (+-5mm) |
| Derailleur Hanger | Sram UDH |
| Others | *Geometry kit included: +- 5mm headset cups, Lower shock mount flip chip, +5mm dropout, -5mm dropout |
