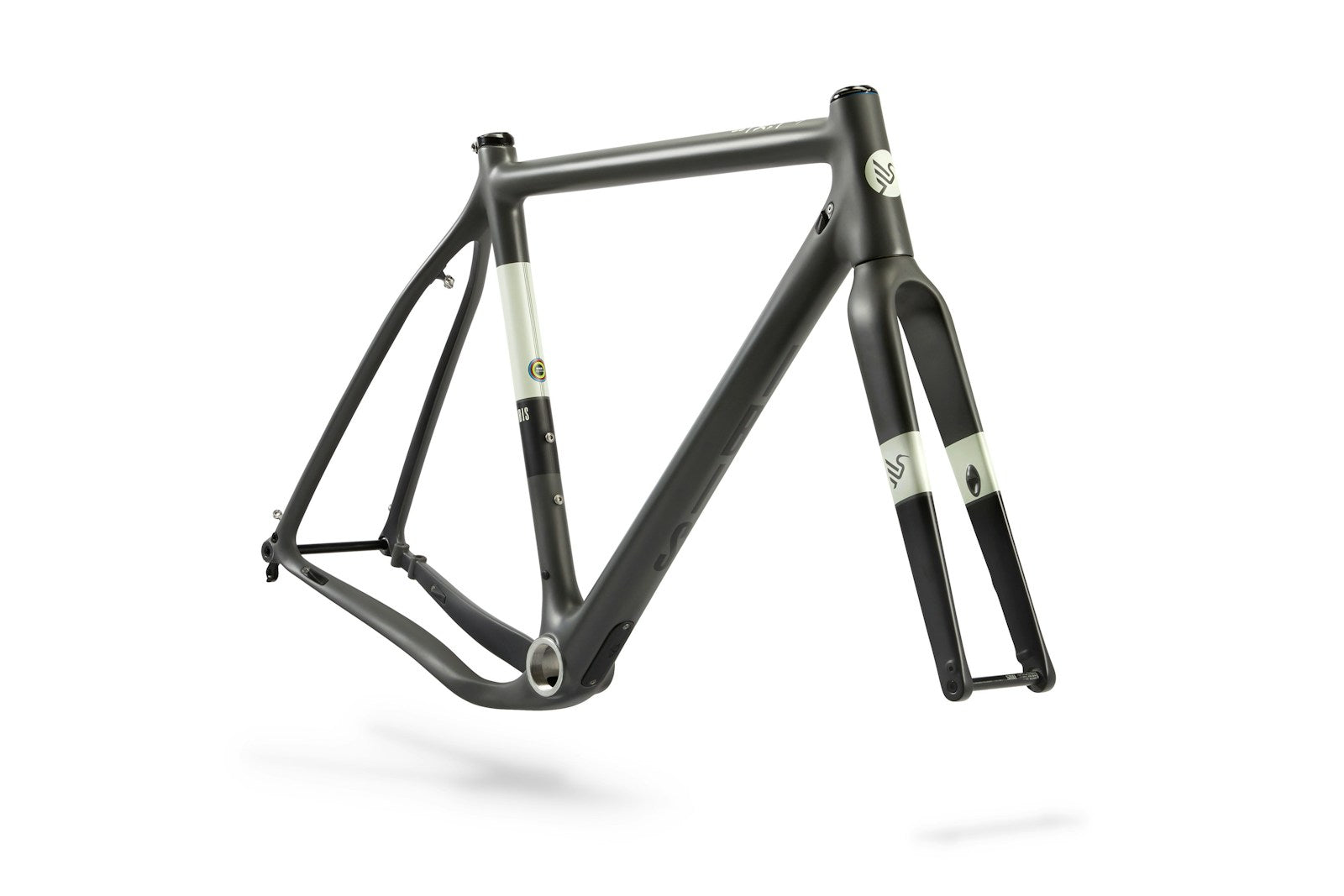

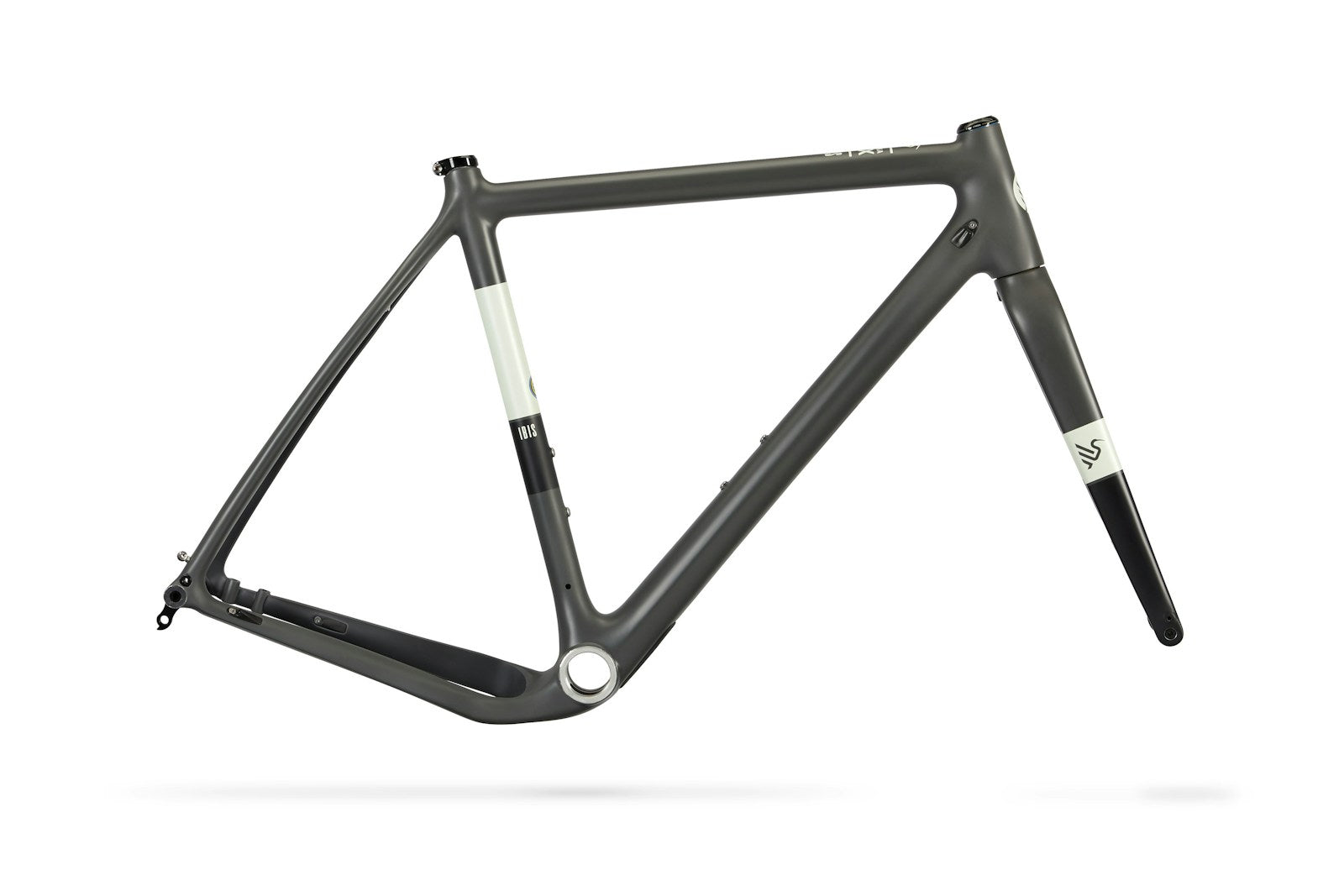

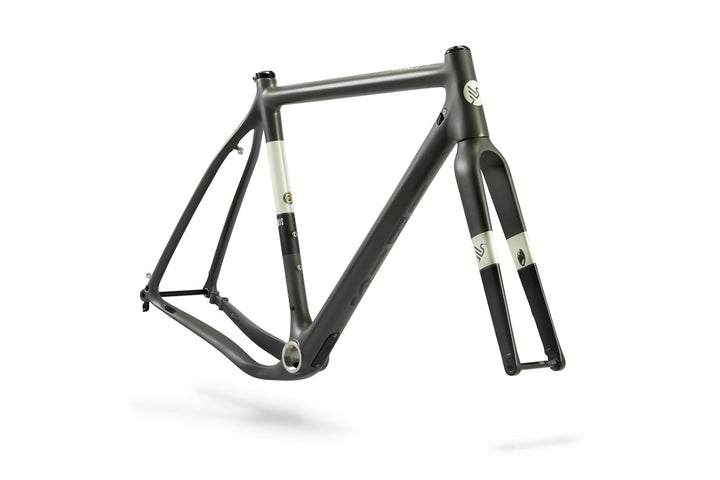

Frame Ibis Hakka MX 49cm Slate
Frame Ibis Hakka MX 49cm Slate
Frame Ibis Hakka MX 49cm Slate
Frame Ibis Hakka MX 49cm Slate
Frame Ibis Hakka MX 49cm Slate
Frame Ibis Hakka MX 49cm Slate
IBIS

Frame Ibis Hakka MX 49cm Slate

$2,549.00 $1,499.00 Save $1,050.00
/
  • Low stock - 1 item left
  • Backordered, shipping soon

The Hakka MX is our answer to the Swiss Army Knife

With its ultra versatile geometry and 1000g frame weight, the Hakka MX is just as happy crushing the local club ride as it is jumping barriers or camping out.The Hakka MX offers internal routing for 1x drivetrains and a dropper post, plus compatibility with Di2 or AXS 2x gearing and a sleek downtube-mounted Di2 battery.The Hakka MX has flat-mount disc mounts and fits a 160mm rotor. The fork has fender eyelets, internal cable routing, and monster clearance for 700c x 45c tires. There’s also a removable rear fender mount on the seat stays.

Frame Size : 49CM
Wheel Size: 700C



Category Specification
Model VersionV1 Rebrand
Frame Material Carbon fiber monocoque
Frame Weight 1000g
Sizes 49 / 53 / 55 / 58 / 61
Colors Lemongrass Green or Cleanslate Gray
Wheel Size Compatibility 700c or 650b / 27.5"
Front Axle 100mm x 12mm thru-axle
Rear Axle 142mm x 12mm thru-axle
Bottom Bracket (BB) T47 Threaded, 68mm, External Cups
Headtube Tapered (IS 41/28.6 upper, IS 52/40 lower)
Seatpost Diameter 31.6mm (Dropper Post Compatible)
Front Brake Flat-mount disc, 160mm rotor
Rear Brake Flat-mount disc, 140mm rotor
Chainstay Length 430mm
Drivetrain Compatibility 1X or 2X (Wireless and Di2 electronic only)
Front Derailleur Spec 34.9mm clamp (Wireless/Di2 FD only)
Chainring Clearance Max 48t for 1X; Min 34t
Warranty Lifetime Frame Warranty
