| SPECIFICATION | DETAIL |
|---|---|

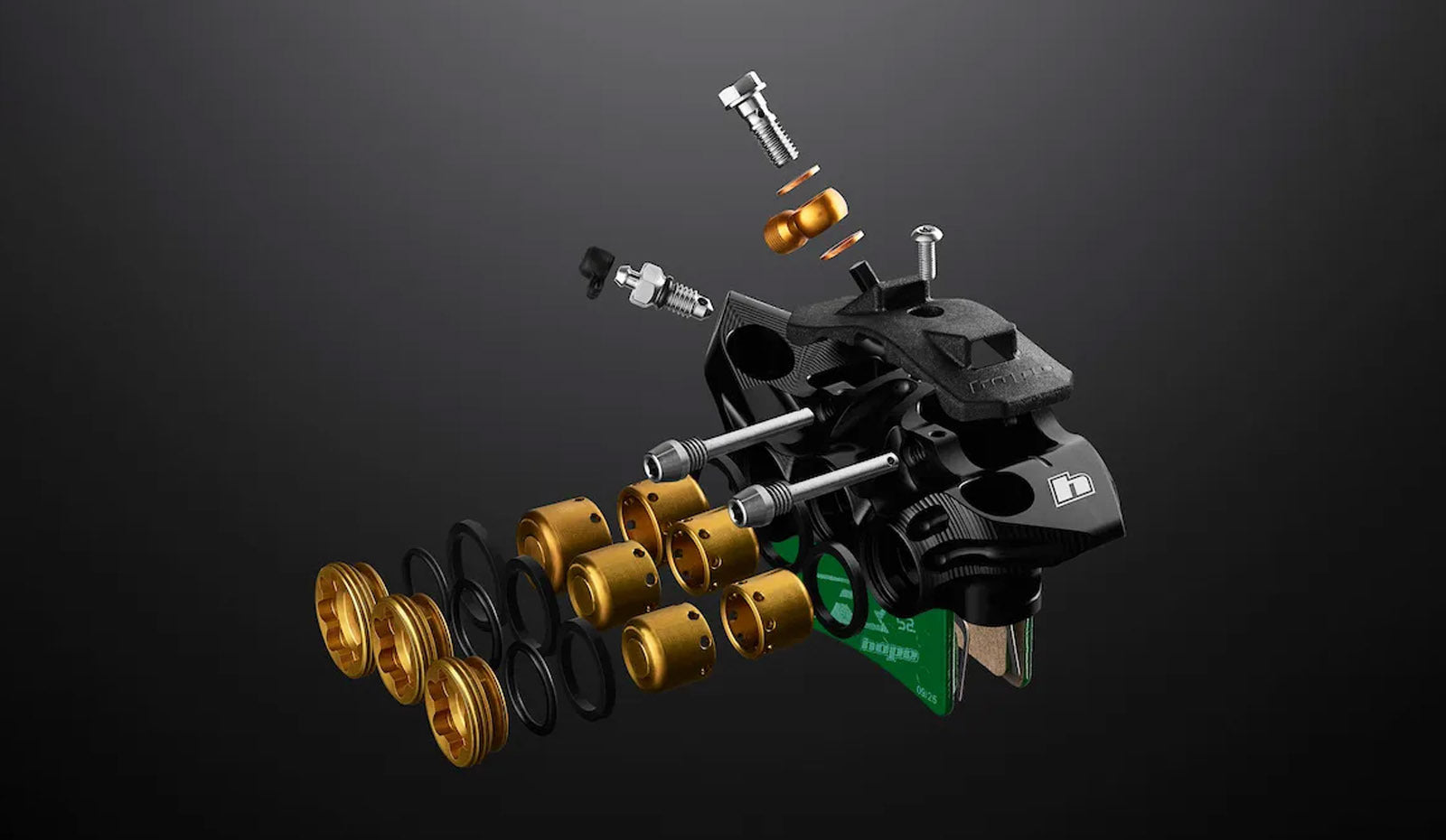

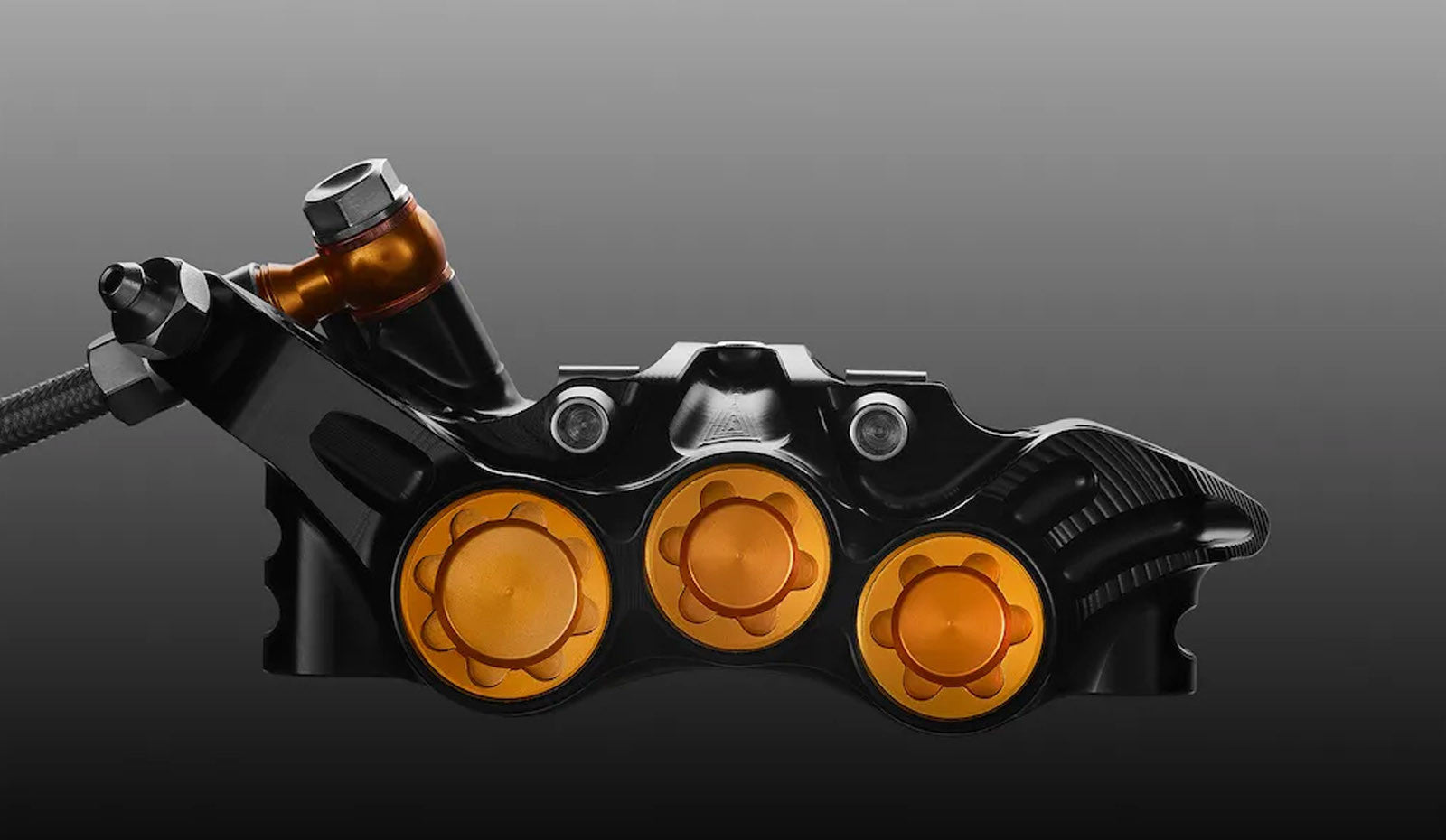

| Calliper Construction | Single-piece CNC-machined aluminium |
| Pistons | Six titanium pistons (Ti-Nitride coated, cross-drilled) |
| Piston Configuration | 2x 16mm + 4x 14mm diameter |
| Total Piston Area | 1,018 mm2 (approx. 6% more than the EVO GR4) |
| Mount Standard | Radial mount, requires dedicated proprietary adapter (+20mm disc diameter) |
| Fork / Frame Compatibility | Postmount only: PM180, PM200, PM203 |
| Rotor Compatibility | 200mm and 220mm only |

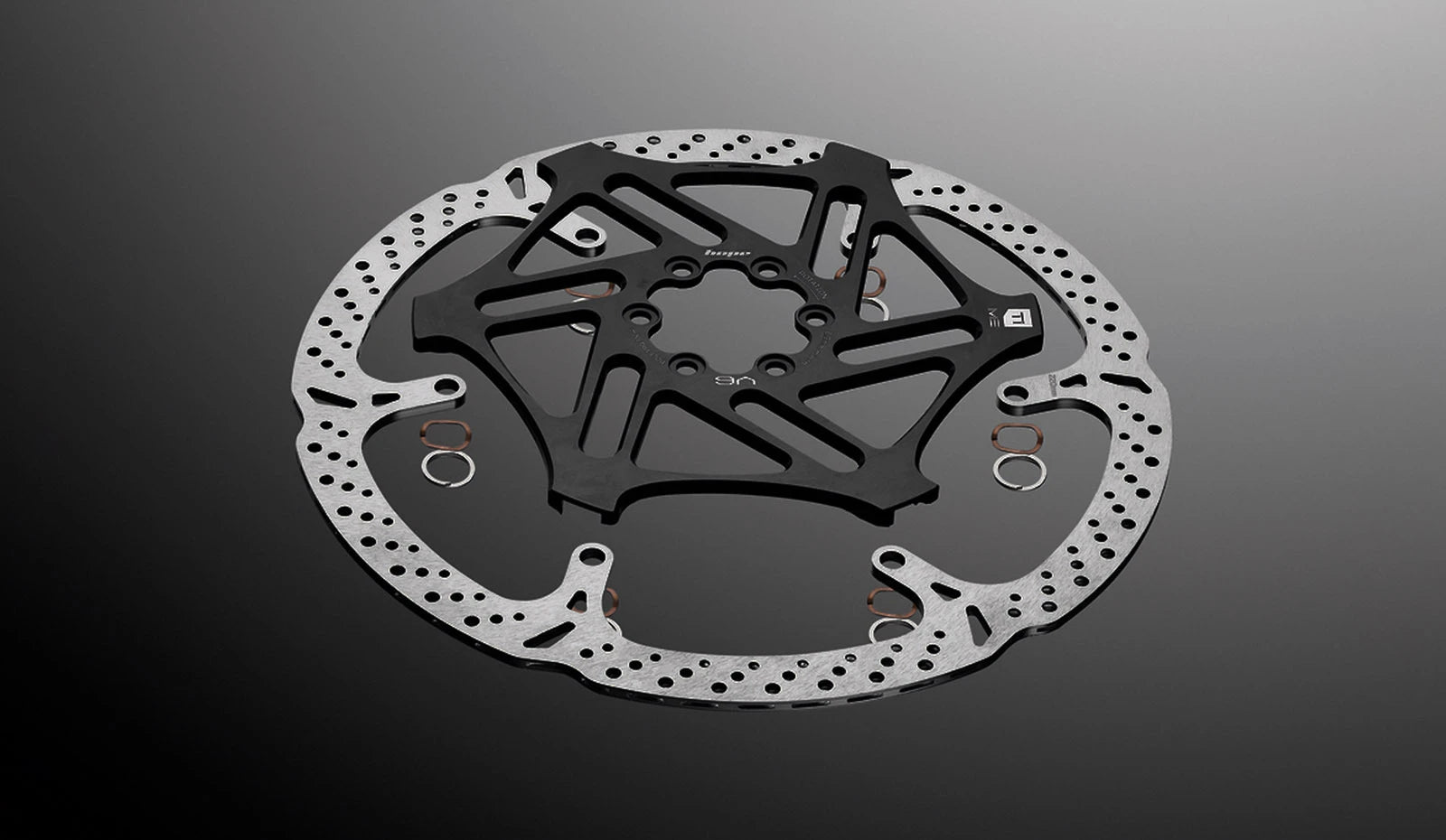

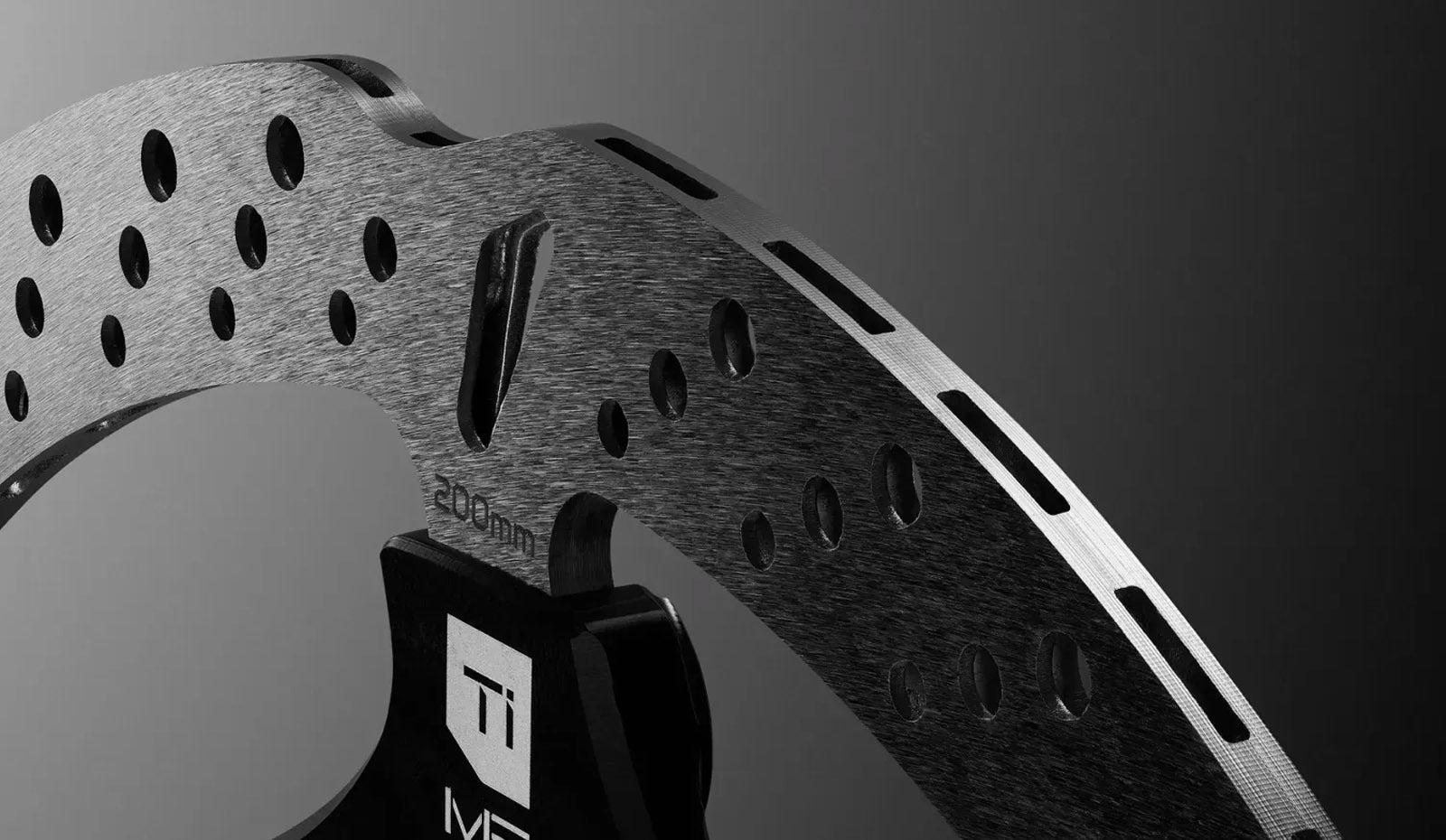

| Rotor Thickness | 2.3mm (standard) and 3.3mm (T-Slot vented) |
| T-Slot Rotor Sizes | 200mm, 203mm, and 220mm, 6-bolt fitment |

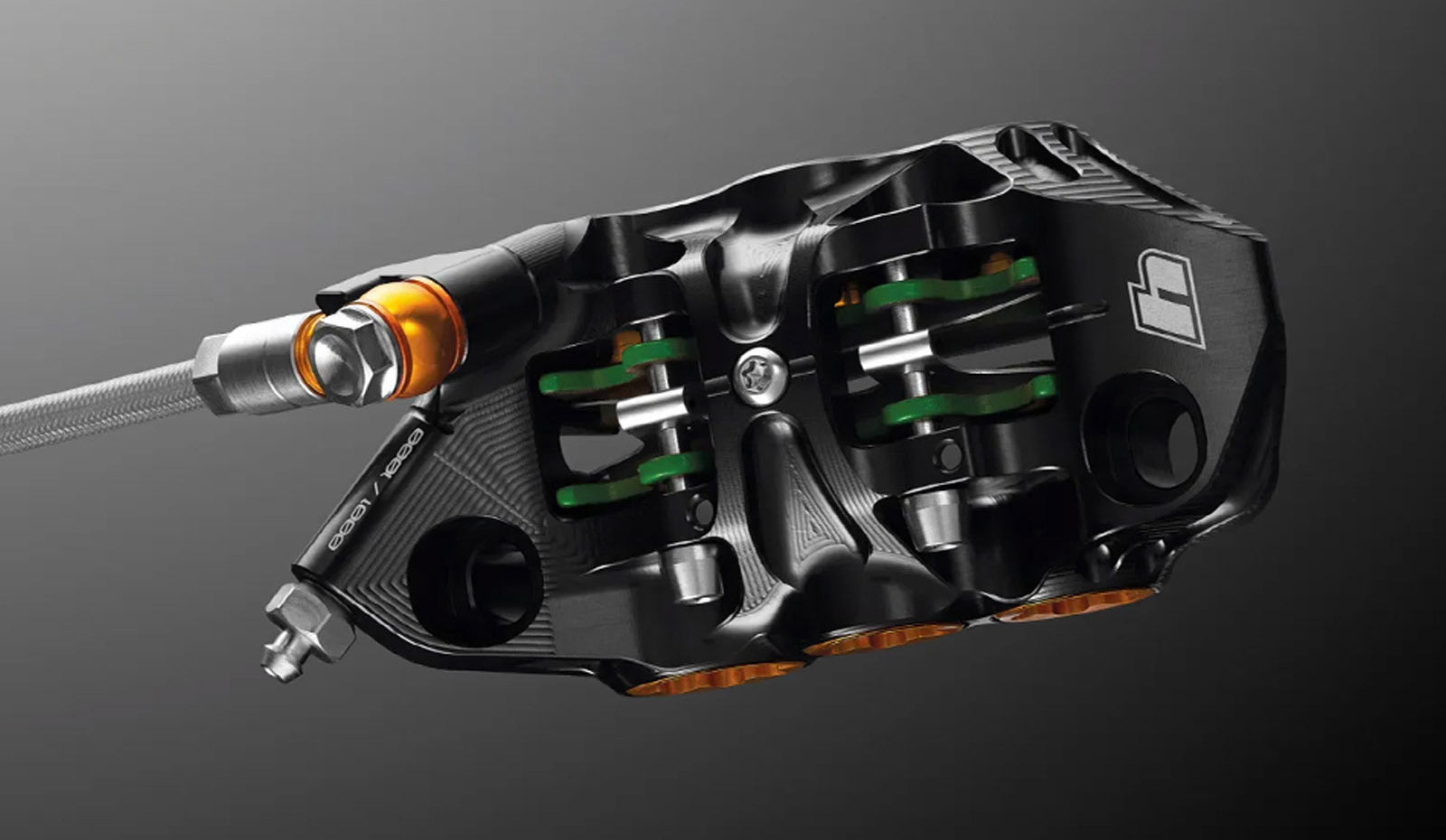

| Pad Design | Dedicated V6Ti pad shape, two fixing pins, large bridge, not top-loading |
| Pad Compounds Included | Race, All-Conditions, and eBike (Mono Edition kit) |

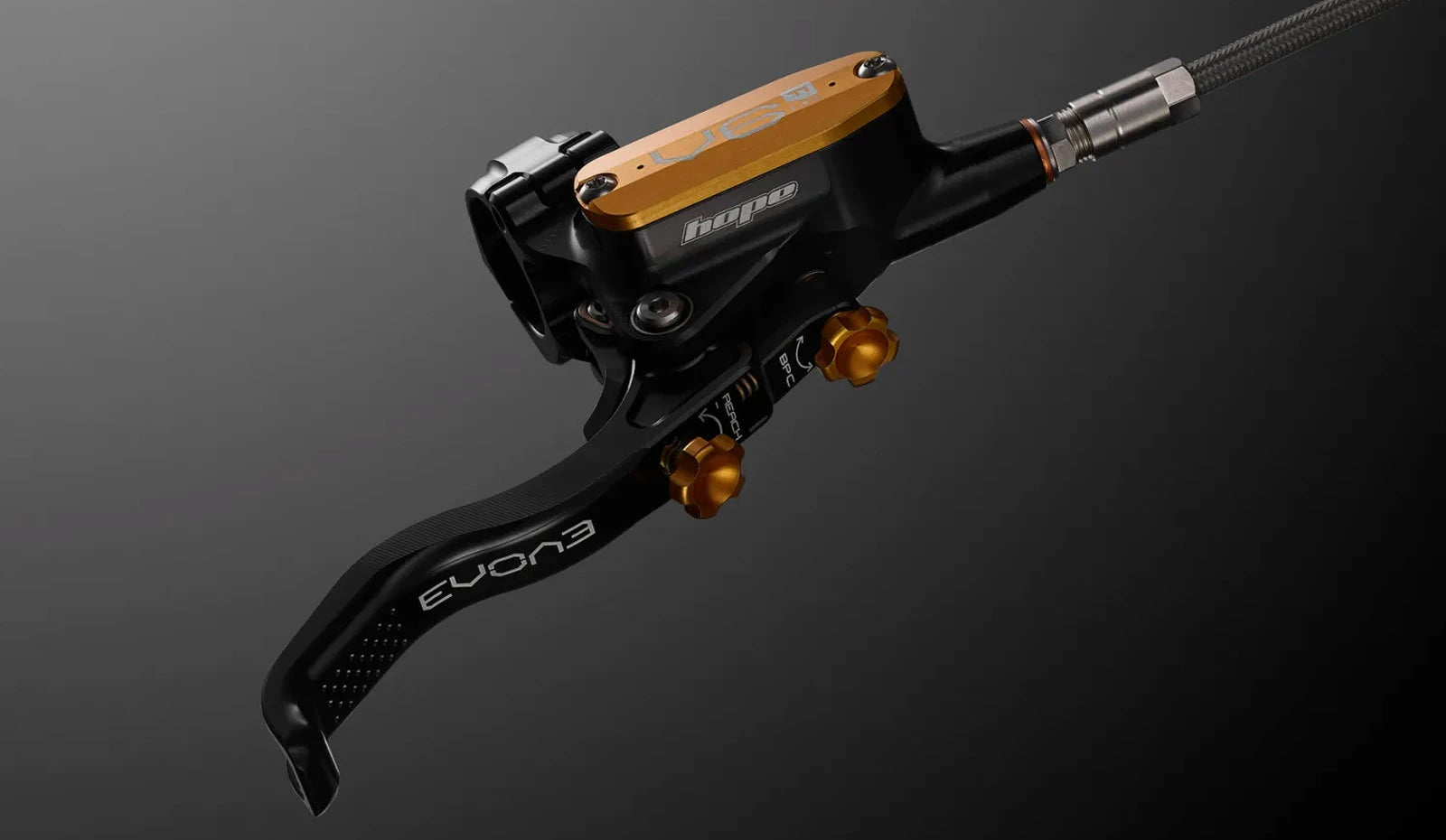

| Lever Compatibility | EVO Master Cylinder, Standard or Power lever only (Control not recommended) |
| Lever Features | Roller bearing main pivot, sliding guide bush, bleed port at lever end, tool-free reach and contact point adjusters |

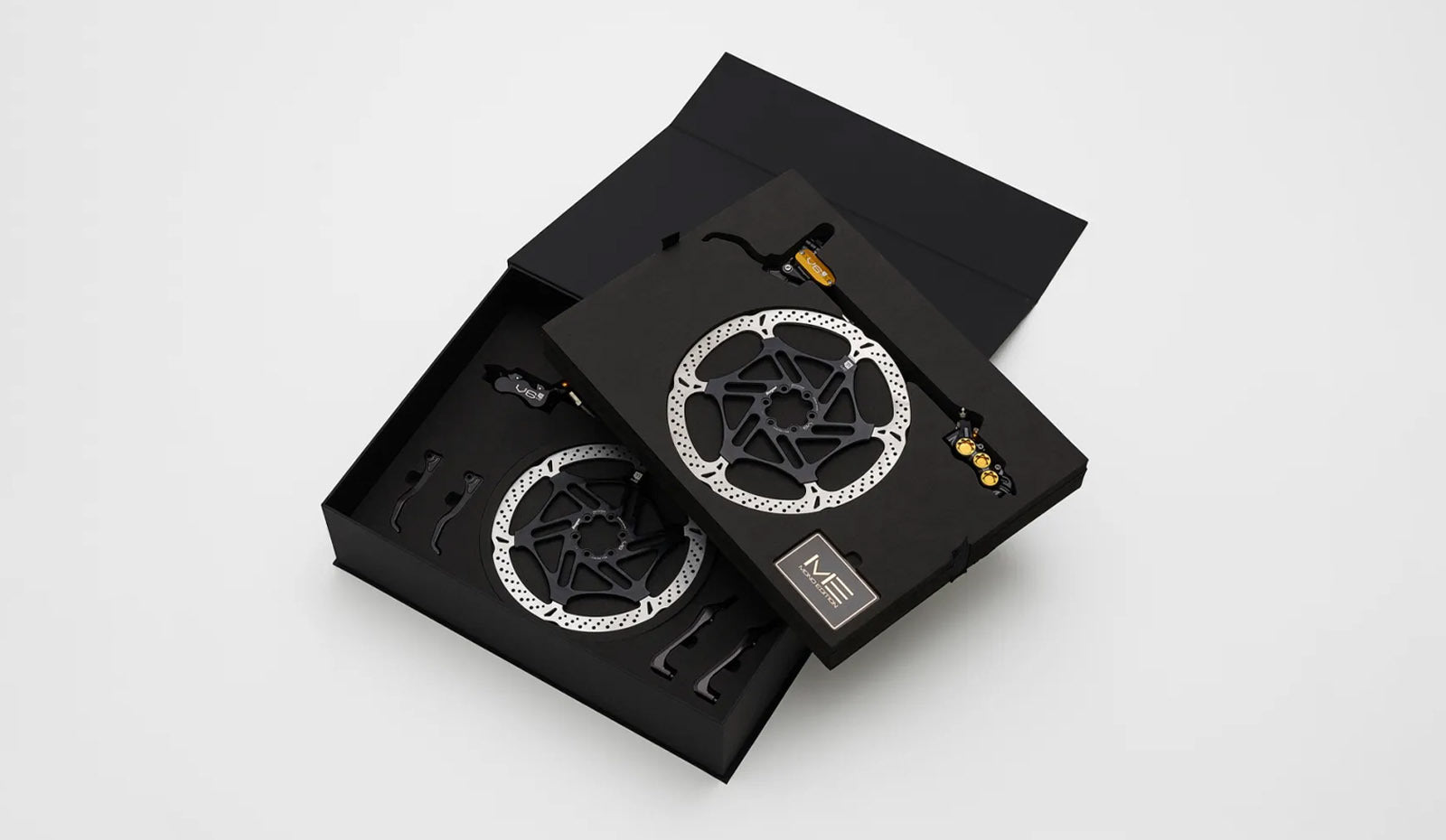

| Mono Edition Kit Contents | Both brakes, T-Slot rotors (220/200mm), adapters, Standard and Power blades, three pad compounds, foam-lined case, standard or braided hose options |
| Mono Edition Quantity | 1,000 individually numbered sets worldwide |
