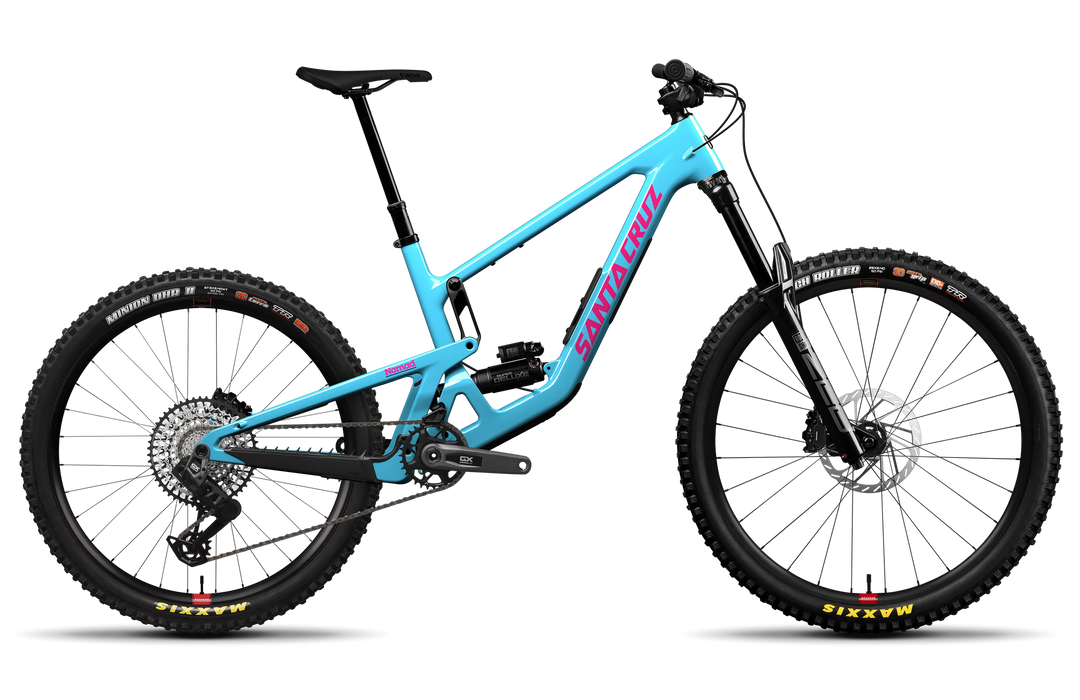

Bike Santa Cruz Nomad 7 CC | GX AXS-Kit | Gloss Aqua | Magenta | LGE '27
Santa Cruz

Bike Santa Cruz Nomad 7 CC | GX AXS-Kit | Gloss Aqua | Magenta | LGE '27

$10,499.00
/
  • Low stock - 1 item left
  • Backordered, shipping soon

STOMPING GAPS AND STAMPING PASSPORTS

Zip it into the bag, chuck it in the van, or toss it over the tailgate—when you get to the trails, you’ll be happy you’re on a Nomad. The refined suspension offers efficient climbing, less reactivity under braking, and improves traction everywhere in between. In short, you’ll be more comfortable, more composed, and more confident no matter what the trail throws your way.

Wheel size: MX
Front travel: 170mm
Rear travel: 170mm
Frame Size: L

 Specifications


Material Carbon CC
Frame Details Carbon CC MX 170mm Travel VPP™
Travel 170mm
Weight 34.48 lbs / 15.64 kg
Wheel Size MX (Mullet - 29" F / 27.5" R)
Fork RockShox Zeb Select+, 170mm
Rear Shock RockShox Super Deluxe Select+, 230x65
Bottom Bracket SRAM DUB 73mm MTB Wide BB
Cassette SRAM GX 1275 Eagle T-Type, 10-52t
Chain SRAM GX Eagle T-Type, Flattop, 12spd
Chainguide OneUp Chainguide
Crankset SRAM GX Eagle DUB T-Type, 32t 170mm
Rear Derailleur SRAM GX Eagle AXS T-Type, 12spd
Shifter SRAM AXS Pod Controller
Brakes SRAM Maven Bronze
Front Rotor SRAM HS2 200mm
Rear Rotor SRAM HS2 200mm
Grips Santa Cruz Bicycles House Grips
Handlebars OneUp Carbon Bar, 35mm 800mm/35mm Rise
Headset Cane Creek 50 IS Integrated Headset
Saddle SDG Bel-Air V3 Lux-Alloy Atmos
Seatpost OneUp Dropper Post, 31.6 L: 210mm
Stem OneUp Enduro Stem (All Sizes: 42mm)
Front Rim Reserve 30|SL AL 6069
Front Hub DT Swiss 370, 15x110, 6-Bolt, 28h
Front Tire Maxxis High Roller, 29"x2.4", 3C MaxxGrip, EXO+
Rear Rim Reserve 30|HD AL 6069
Rear Hub DT Swiss 370, 12x148, XD, 6-Bolt, 36t, 32h
Rear Tire Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, Double Down
Valves Reserve Fillmore Valves
Headset Type Integrated (IS41/52)
Fork Axle to Crown 588mm
Fork Offset 44mm
Fork Compatibility 170–180mm
Suspension System VPP™
Rear Travel 170mm
Recommended Sag 30%
Shock Dimensions 230mm Length x 65mm Stroke
Shock Bushings 30x8 (Front) / 30x8 (Rear)
Bottom Bracket Shell 73mm Threaded
Chainline 55mm
Max Chainring Size 36t
Chainguide Standard Integrated upper guide + 2-bolt ISCG 05 bash mount
UDH Compatible Yes
Rear Hub Spacing 148mm
Rear Brake Mount Postmount 200mm
Max Rotor Size 223mm
Seatpost / Clamp Dia. 31.6mm Post / 36.4mm Clamp
Frame Features 1 Water Bottle Mount, Glovebox Downtube Storage
