| Frame | Mondraker Stealth Air full Carbon, Updated Zero Suspension System, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers. |
| Sizes | S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm |
| Rear shock | Fox Float X Factory Kashima Evol LV 205x65mm. 2-positions lever compression (Open/Firm), low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings. |
| Shock settings | CS 30 compression, L1 Bleed, RL50 rebound, Rezi B40, LML, standard MCU, 0 volume spacers |
| Fork | Fox 38 29 Float GRIP X2 Factory Kashima, 170mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. High and low-speed compression, high and low-speed rebound, air preload. |
| Headset | Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube. Internal cable routing, sealing plugs, without blocklock. |
| Stem | Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore |
| Handlebar | Onoff S9 1.0 7050 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8 mm barbore. L and XL size: 38mm rise. |
| Grips | Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm) |
| Saddle | Ergon SM10 E-Mountain Black. |
| Front brake | Sram Maven Base, 18-millimeter 4 piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads. |
| Rear brake | Sram Maven Base, 18-millimeter 4 piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads. |
| Brake lever | Sram Maven Base, Directlink and lever pivot bushings, tools-free reach adjust |
| Rims | DT Swiss Hybrid H 1900 SPLINE aluminum, hooked / crotchet tubeless TC, 30mm internal width, tubeless ready, 28 spokes. |
| Spokes | DT Swiss Straightpull spokes, DT Hybrid I, black |
| Front hub | DT Swiss 370, Boost 15x110mm, IS 6 bolts |
| Rear hub | DT Swiss 370 with 18T Ratchet LN System, Boost 12x148mm, IS 6 bolts, HG freehub |
| Front tire | Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead |
| Rear tire | Maxxis Minion DHR II 27.5x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead |
| Crankset | ethirteen Helix Race espec alloy. All sizes: 155mm |
| Rings | Sram Eagle 36T T-Type, 104BCD, steel, CL55 |
| Chain | Sram GX Eagle T-Type, 12s Flattop, w/Powerlock |
| Rear derailleur | Sram S1000 Eagle AXS, T-Type, 12s |
| Shift levers | Sram Eagle AXS Pod Controller w/discrete clamp, 12s |
| Casette | Sram XS 1270, 10-52T, T-Type, 12s |
| Others | Sram AXS Extension Cord / Avinox 4A Charger |
| Weight | 22.8 Kg |
| Displasy | Avinox DP100 Display / Avinox BC100 Wireless Controller (L&R) |
| Battery | Avinox 800Wh Battery |

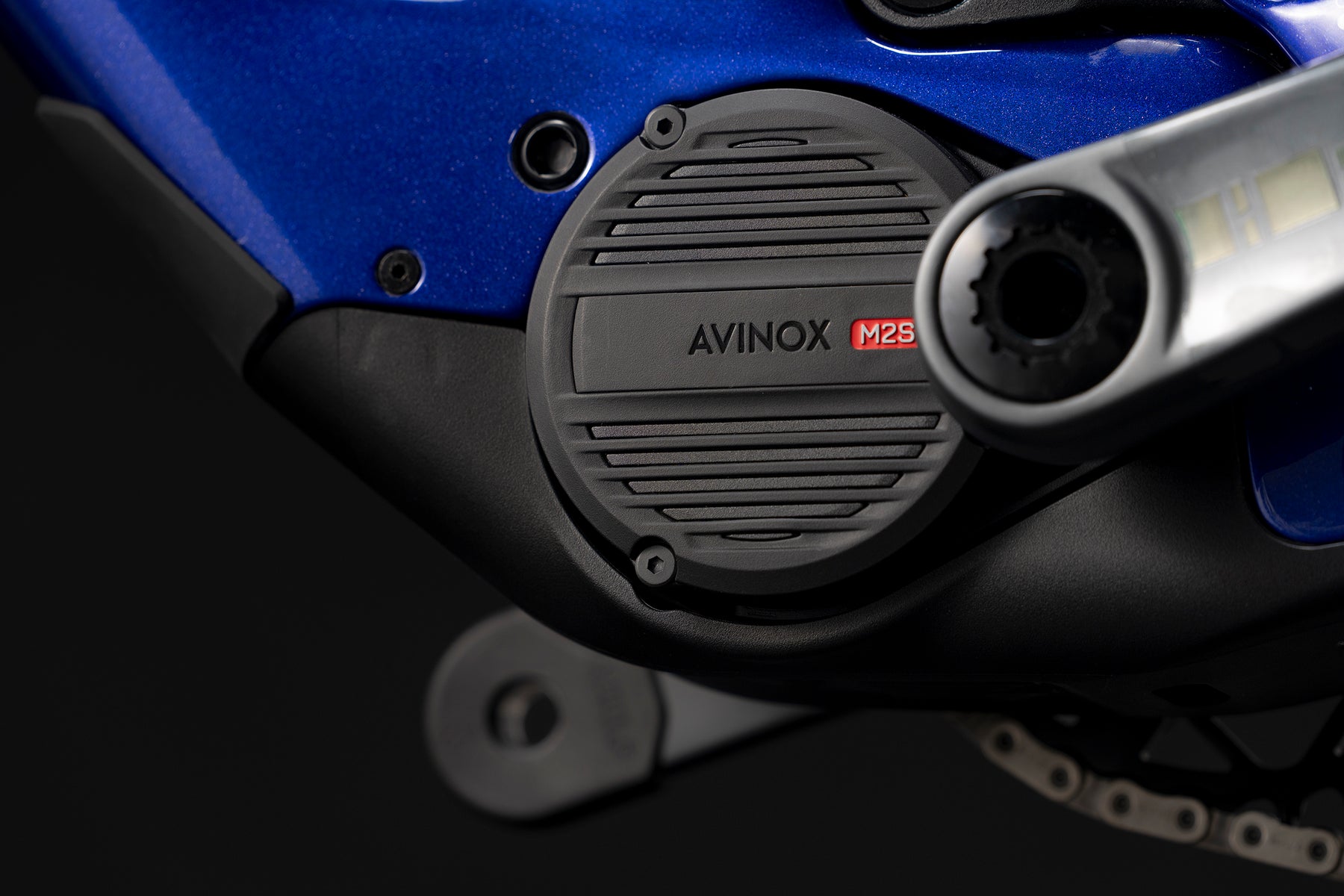

| Motor | Avinox M2S |
