| Frame |
Summum MX 6061 Alloy Stealth Evo, Mullet, hydroformed tubing, Updated Zero Suspension System, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, 12x157mm rear axle, UDH, 83mm BSA bottom bracket, MAX. capacity dual row Enduro bearings, HHG internal cable routing, ISCG 05. |
| Sizes |
M / L / XL |
| Rear shock |
Fox DHX2 Performance Elite, 225x75mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings |
| Shock settings |
CL80 compression, RL70 rebound, Rezi B80, Bleed 0.5, VVCM. Spring rate: M size 450 lbs, L size 500 lbs, XL size 550 lbs |
| Fork |
Fox 40 29 Float GRIP Performance, 203mm, air spring, 1-1/8” steerer tube, 20x110mm axle, offset 52mm. Settings: 3-pos compression dial, air preload |
| Headset |
Onoff DH ARS (Adjustable Reach System) 1-1/8", 1-1/8" steerer tube, 41x30x7 45ºx45º sealed bearings, reach geometry kit cups (+-5mm) |
| Stem |
Onoff S9 DH CNC Integrated, 45-50mm adjustable length, 10mm rise, 31.8mm barbore, 7075 alloy, 2x6mm spacer |
| Handlebar |
Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. |
| Grips |
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size |
| Seatpost |
Onoff S3 DH Alloy, diameter 31.6mm, length 300mm |

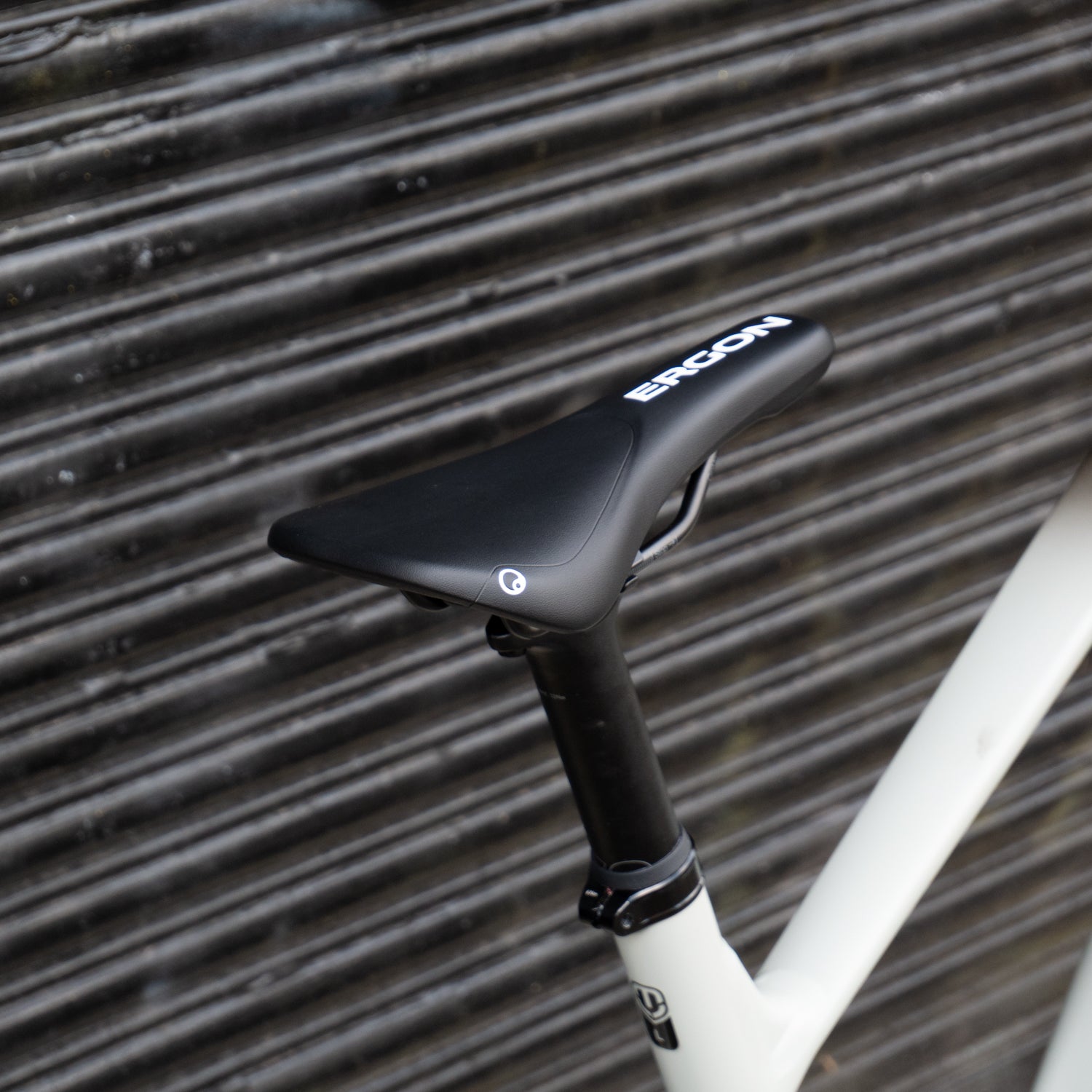

| Saddle |
Ergon SM10 DH Black |
| Front brake |
Sram Maven Base, 18 millimeter 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear brake |

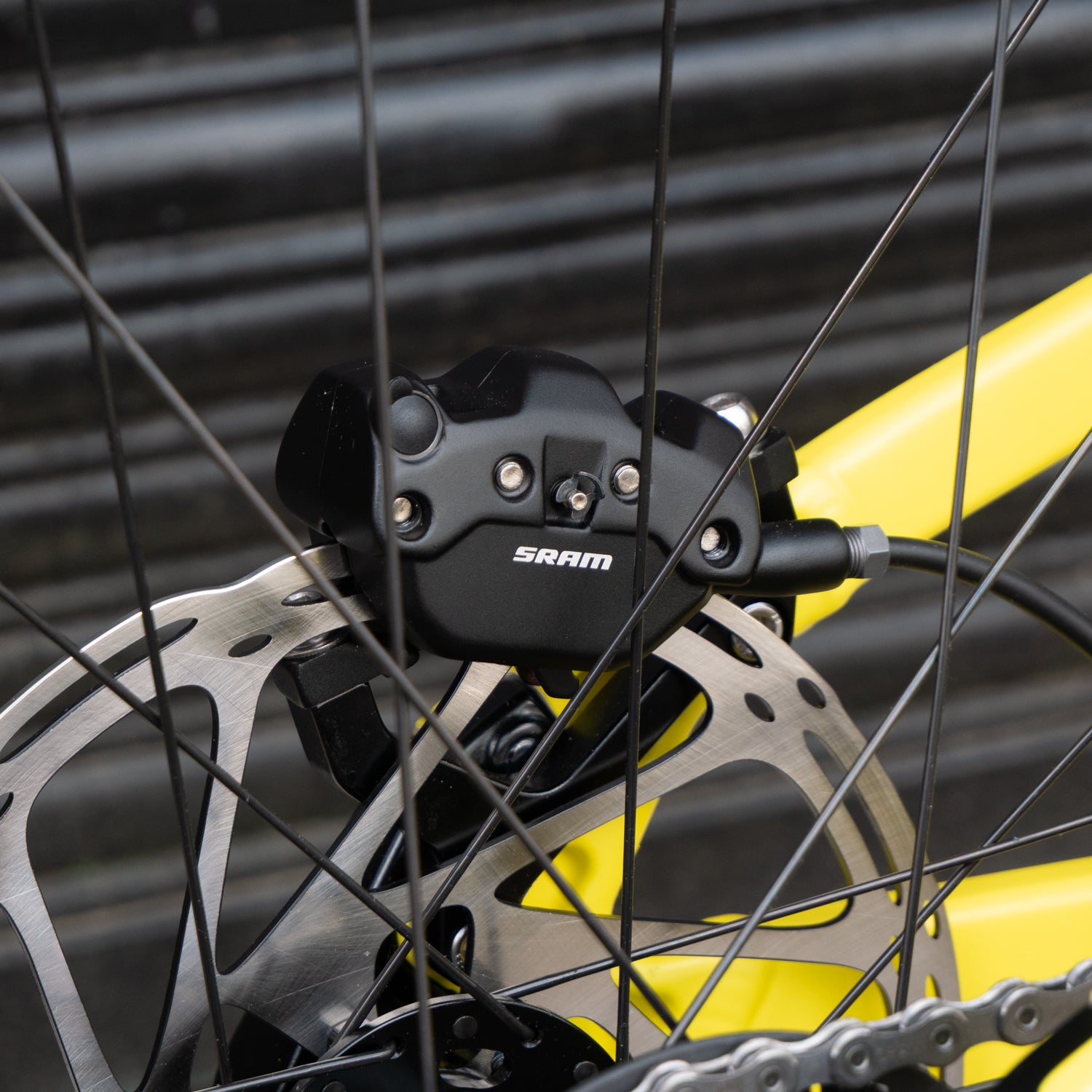

Sram Maven Base, 18 millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |

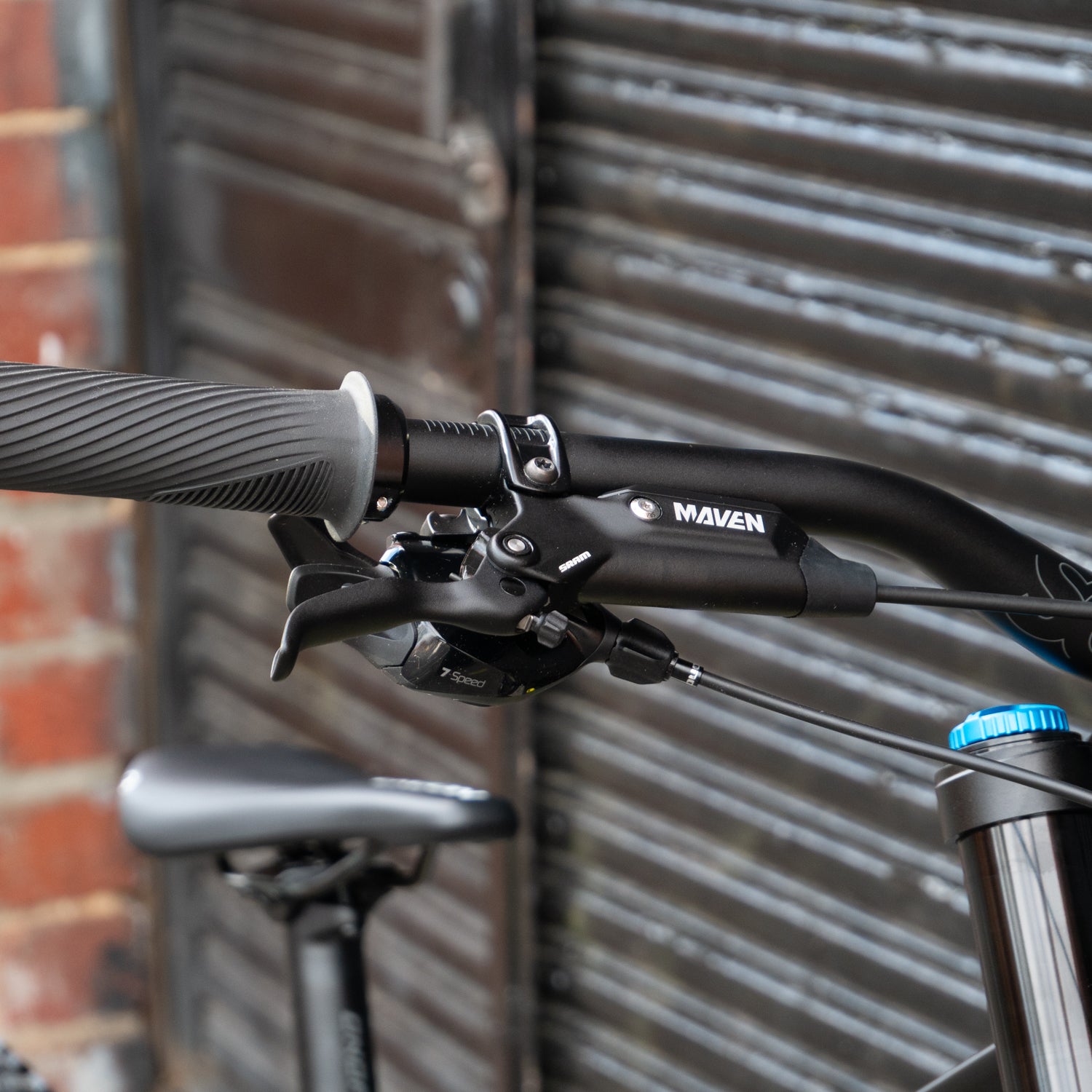

| Brake lever |
Sram Maven Base , SwingLink and lever pivot bushings, tools-free reach adjust |

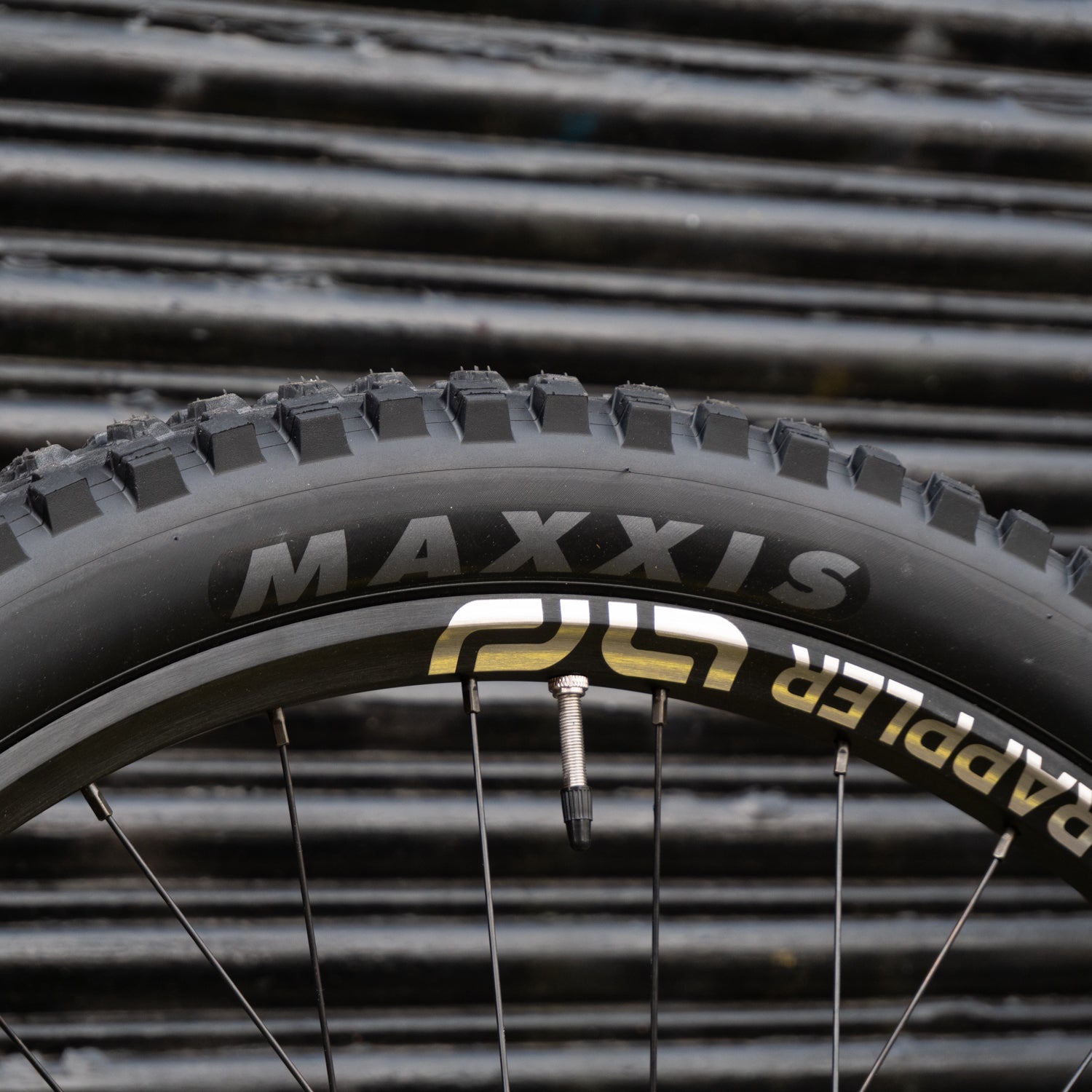

| Rims |
e*thirteen Grappler Flux, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes |
| Spokes |
e*thirteen Sapim D-light / Brass |

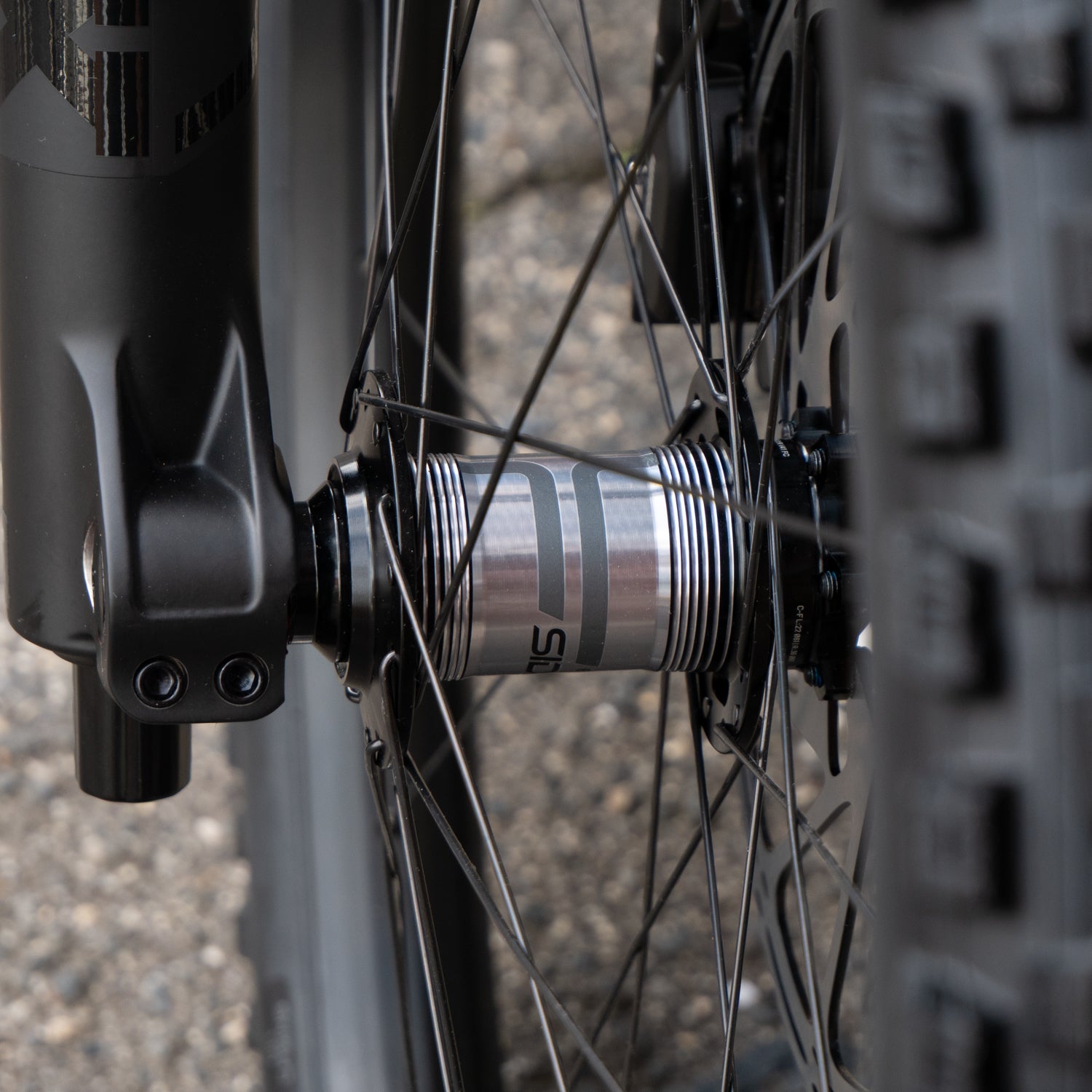

| Front hub |
e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Rear hub |
e*thirteen 12x157mm, Sidekick,12°/15°/18° Adjustable Deadband, triple-sealed, IS 6 bolts, HG freehub |
| Front tire |
Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, DH casing, 60x2TPI, folding bead |
| Rear tire |
Maxxis Minion DHR II 27.5x2.5 WT, tubeless ready, 3C Maxx Terra compound, DH protection, 60x2TPI, folding bead |

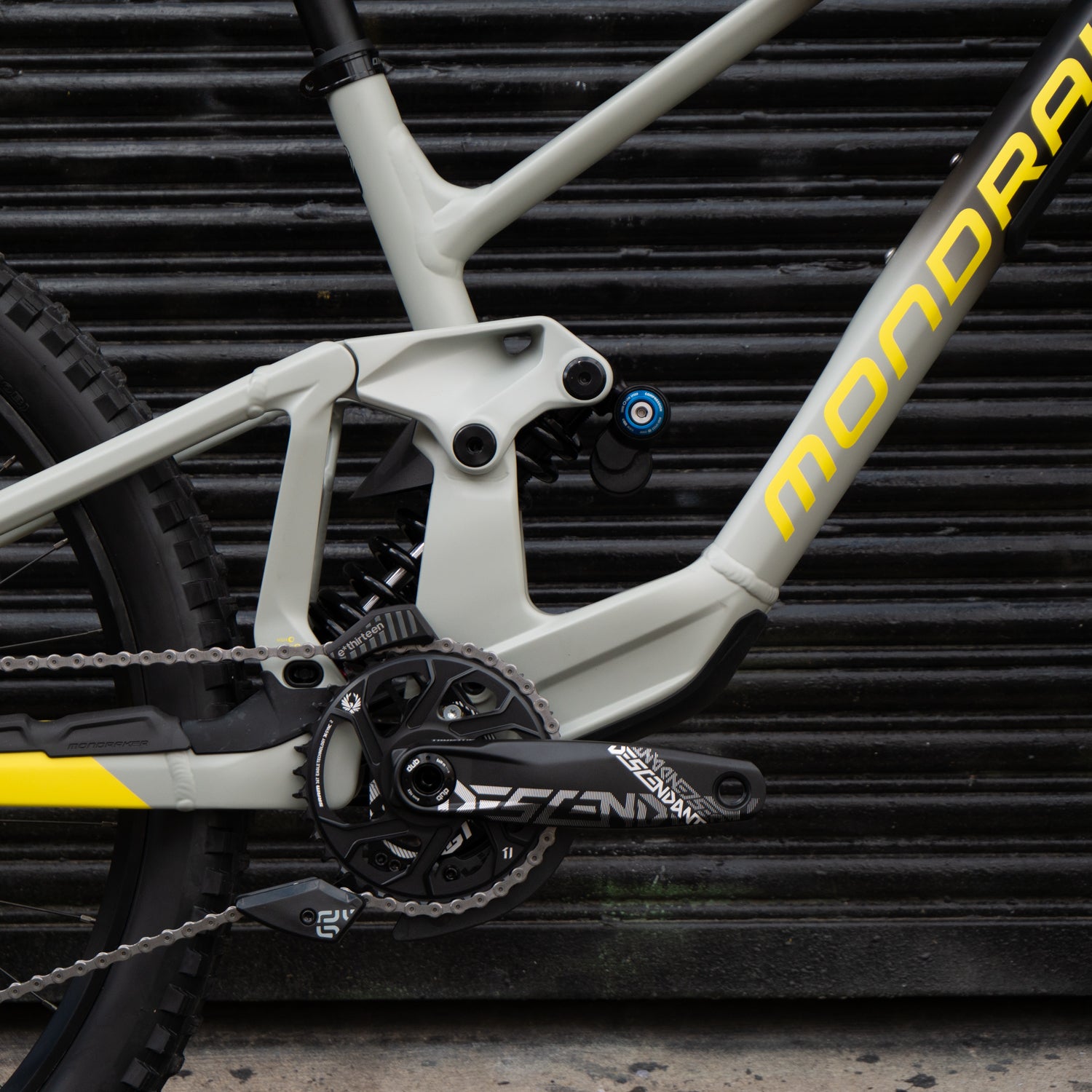

| Crankset |
Sram Truvativ Descendant DH, DUB axle, Direct mount chain ring, 165mm CL 56.5 |
| Rings |
34T, steel, X-SYNC |
| Bottom bracket |
Sram DUB BSA, sealed bearings, 83mm |
| Chain |
Sram PC1110 11s, Powerlock |
| Chainguide / Bash |
E.13 Vario Compact Upper Slider ,Alloy backplate ,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider |

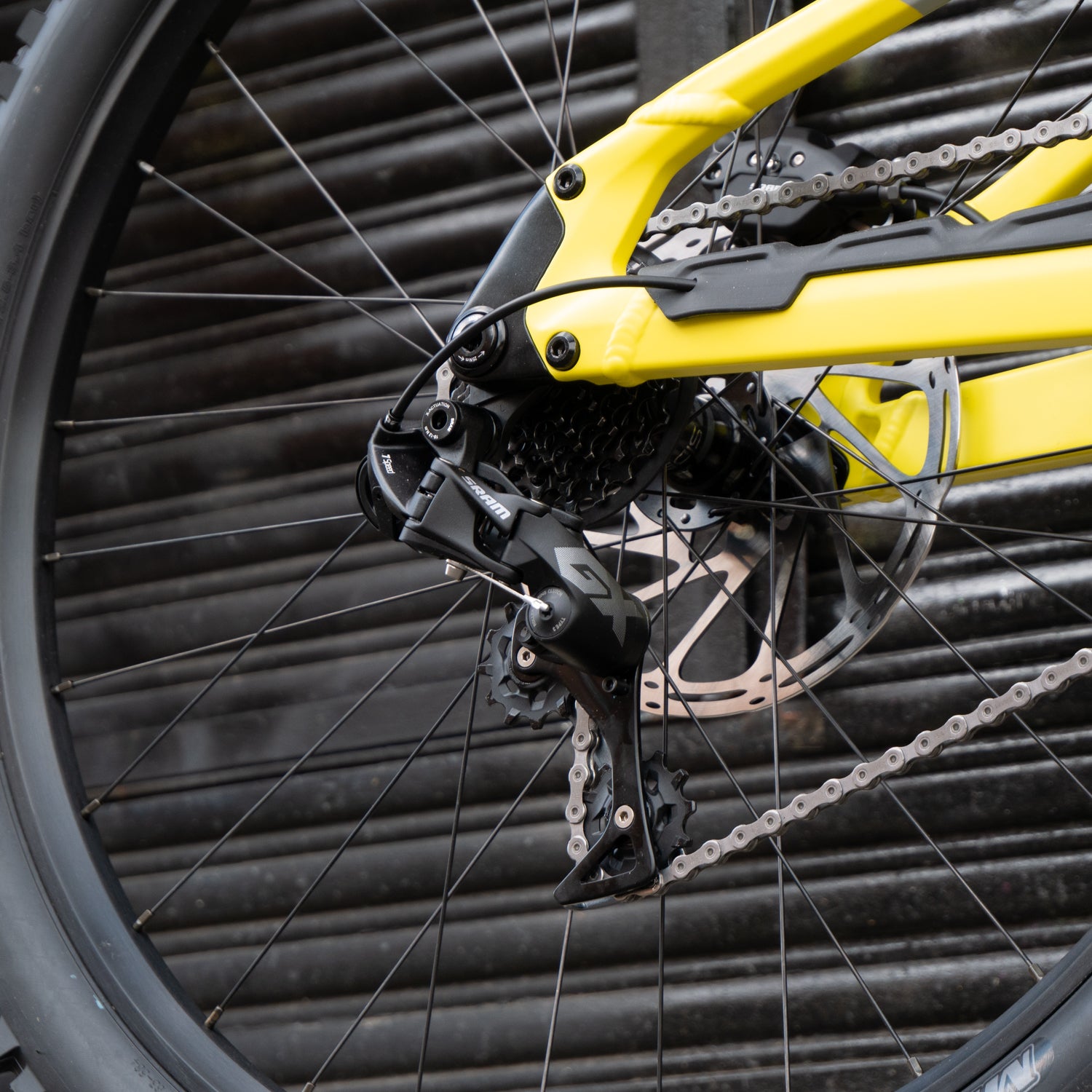

| Rear derailleur |
Sram GX DH, 7s, medium cage |
| Shift levers |
Sram trigger GX DH 7s, X-actuation 1:1 |
| Cassette |
Sram PG 720 11-25T, 7s |
| Derailleur hanger |
Sram UDH |
| Others |
Geometry kit included: +- 5mm headset cups, Lower shock mount flip chip, +5mm dropout, -5mm dropout |
| Weight |
18.9 kg |
