Frame
|

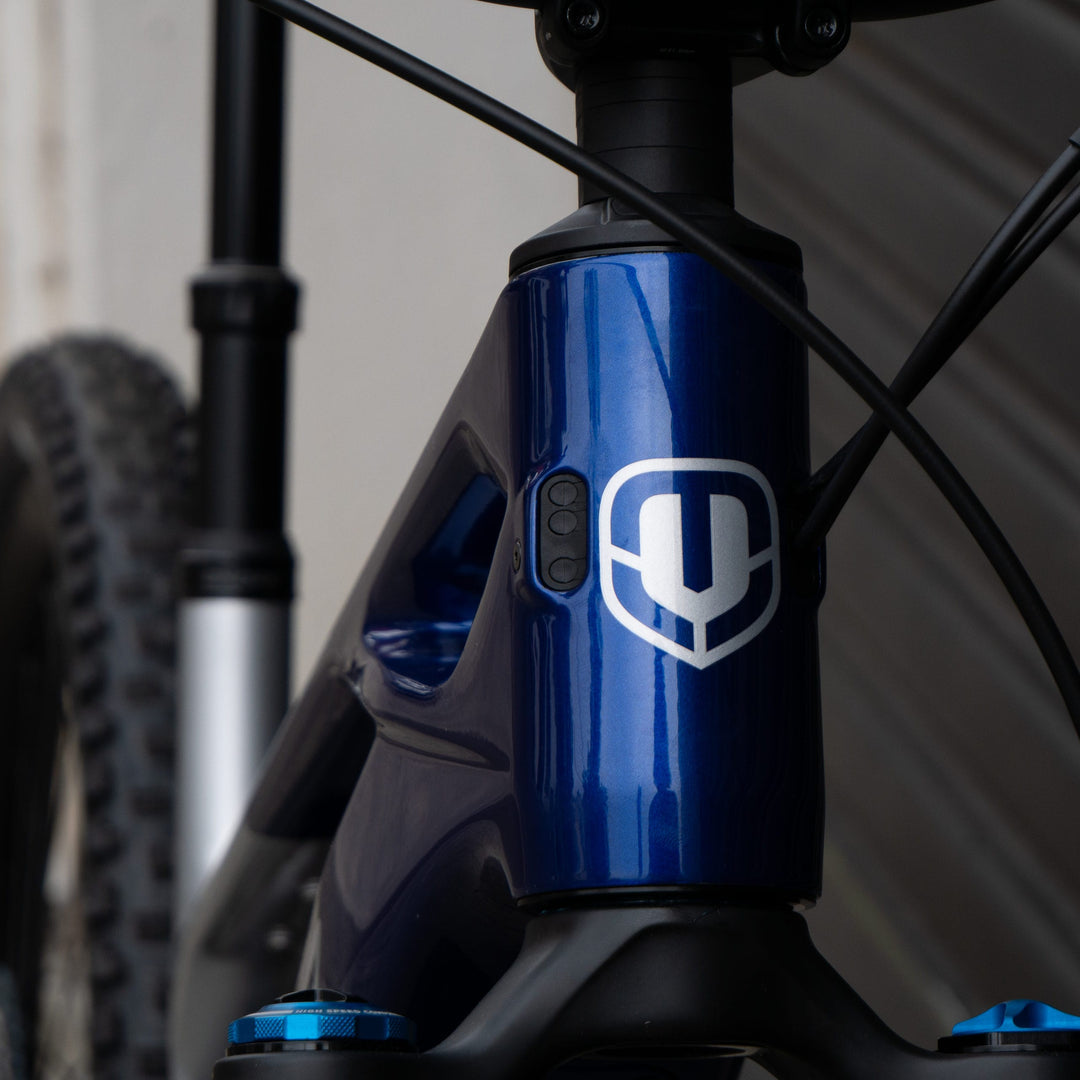

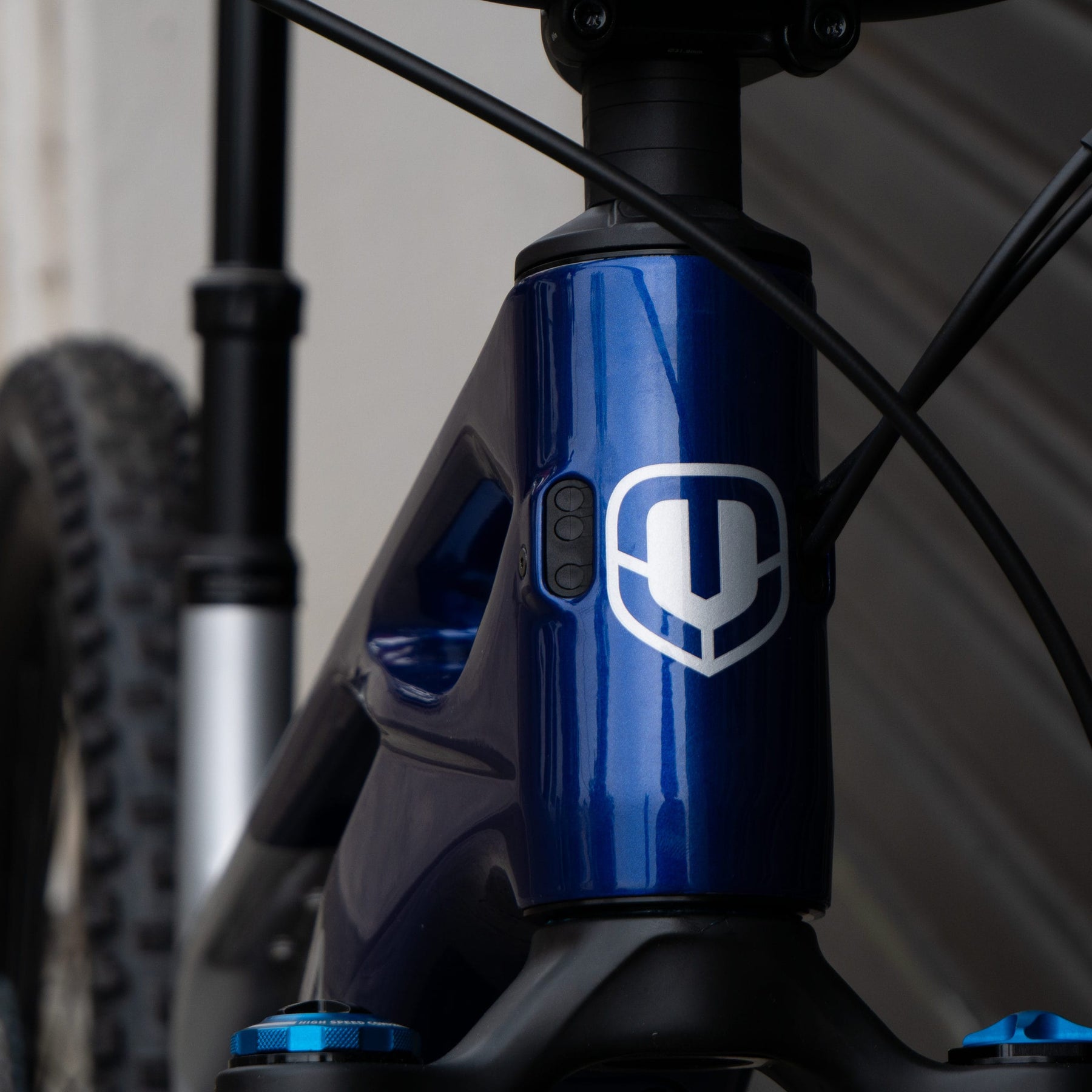

Crafty Stealth Air full Carbon front / Stealth Alloy rear, 150mm travel, Forward Geometry, Updated Zero Suspension System, UDH, HHG internal routing |
| Sizes | S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm |
| Fork | Fox 38 29 Float GRIPX2 Factory Kashima, 160mm, 15x110mm Kabolt axle, 44mm offset |

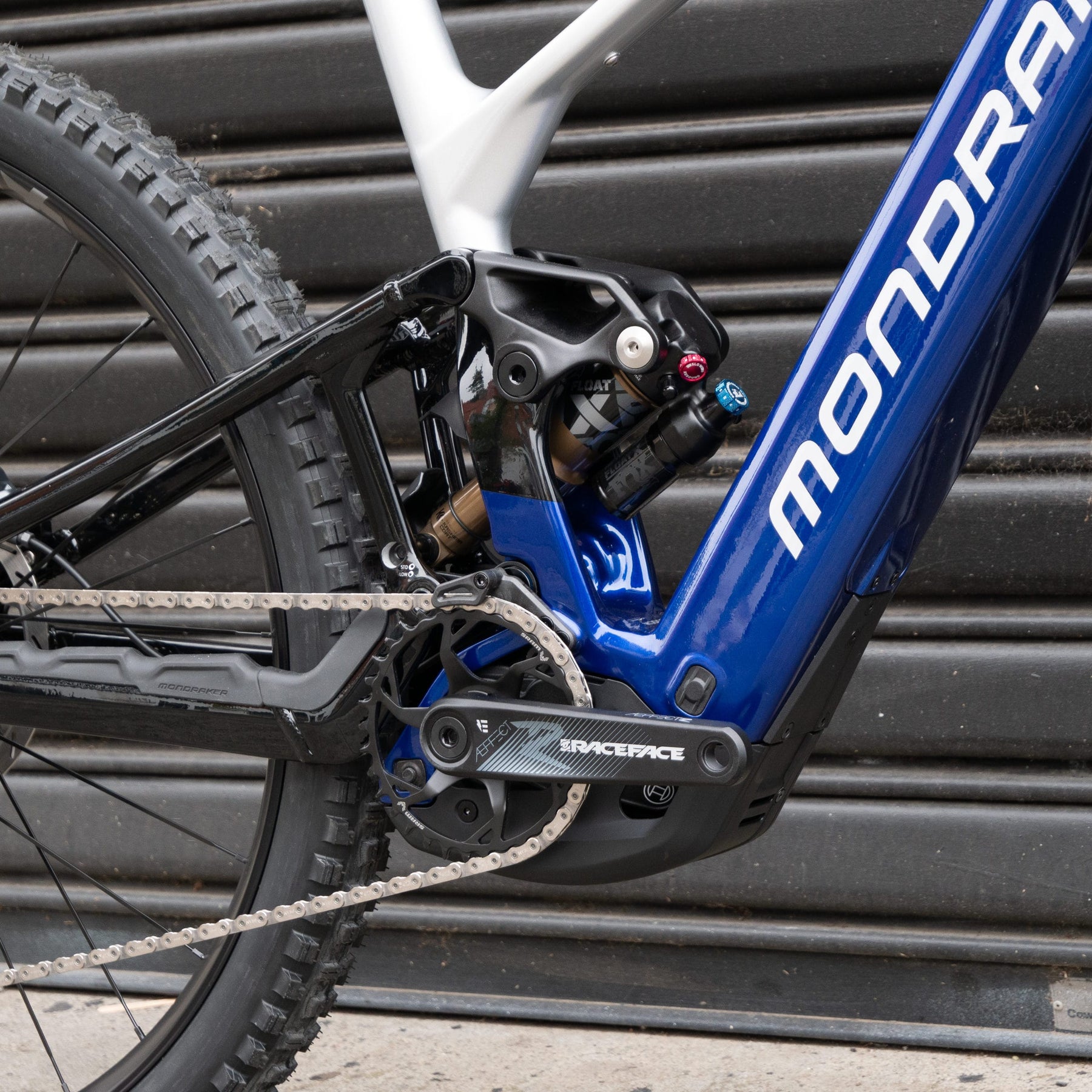

| Rear Shock | Fox Float X Factory Kashima EVOL, 185x55mm, 2-position (Open/Firm) |
| Shock Tune | CS40 compression, RL70 rebound, Rezi B40, LML, 0.2 volume spacer |

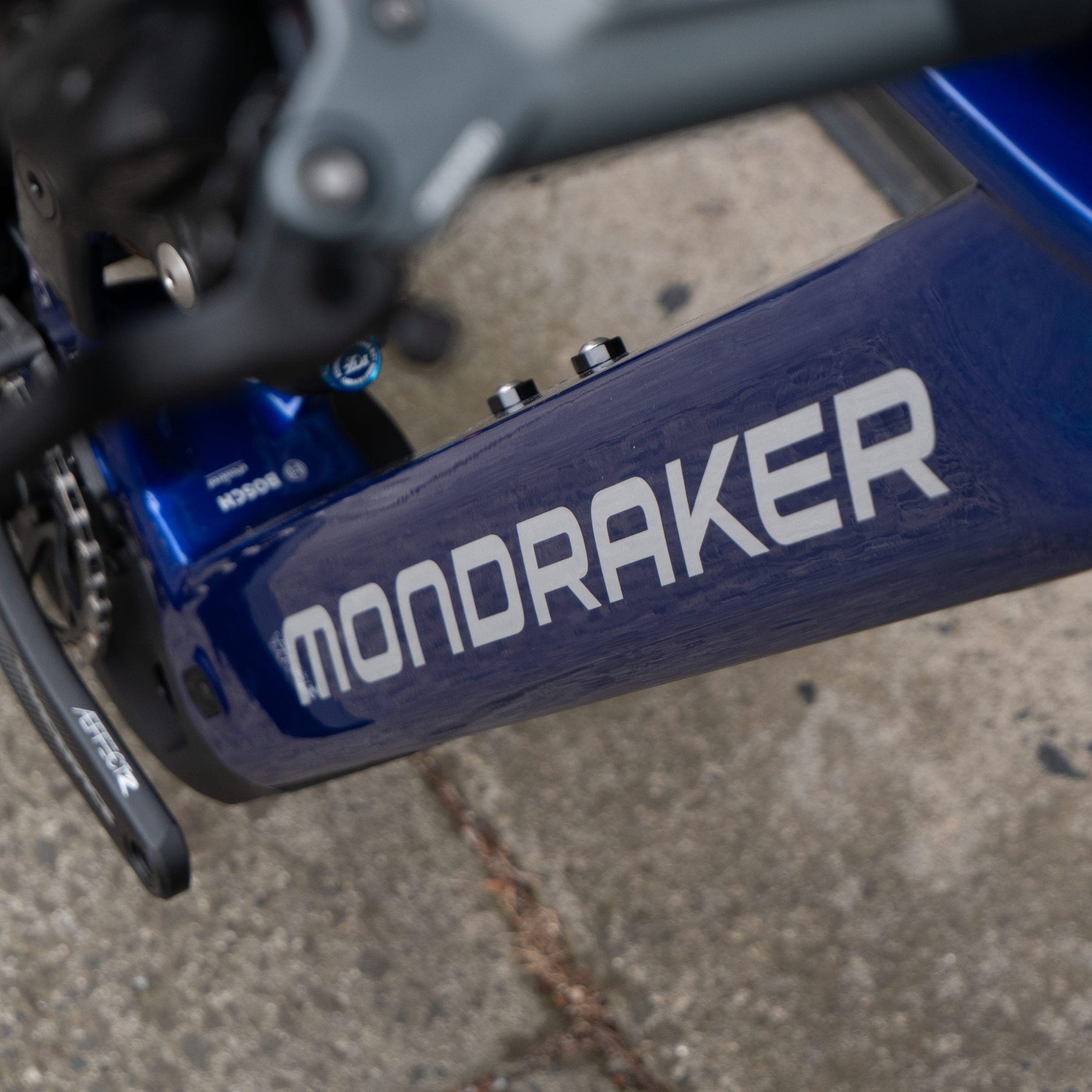

| Motor | Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y) |
| Battery | Bosch Powertube 800Wh (Internal, removable) |

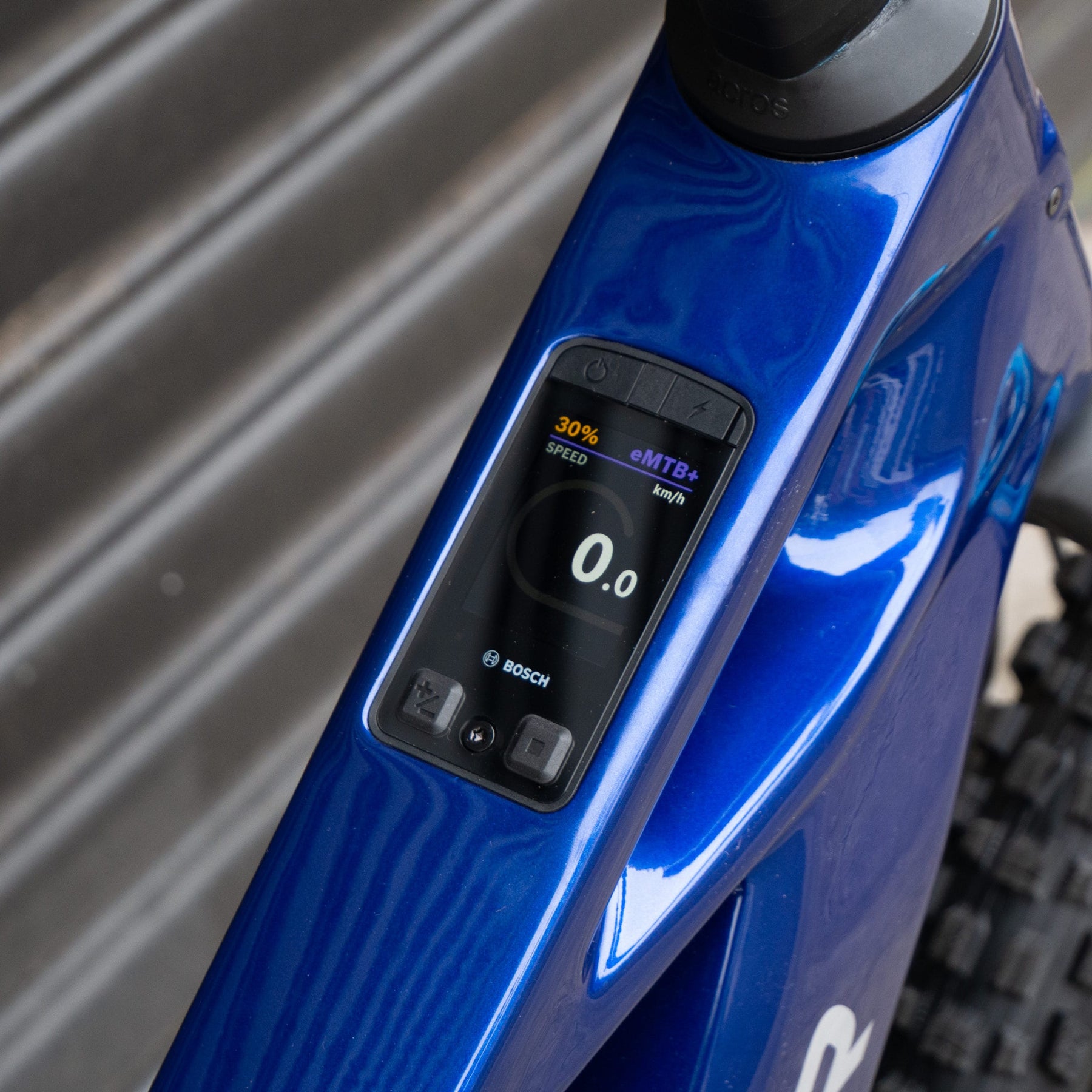

| Display/Remote | Kiox 400C / Bosch Mini Remote |

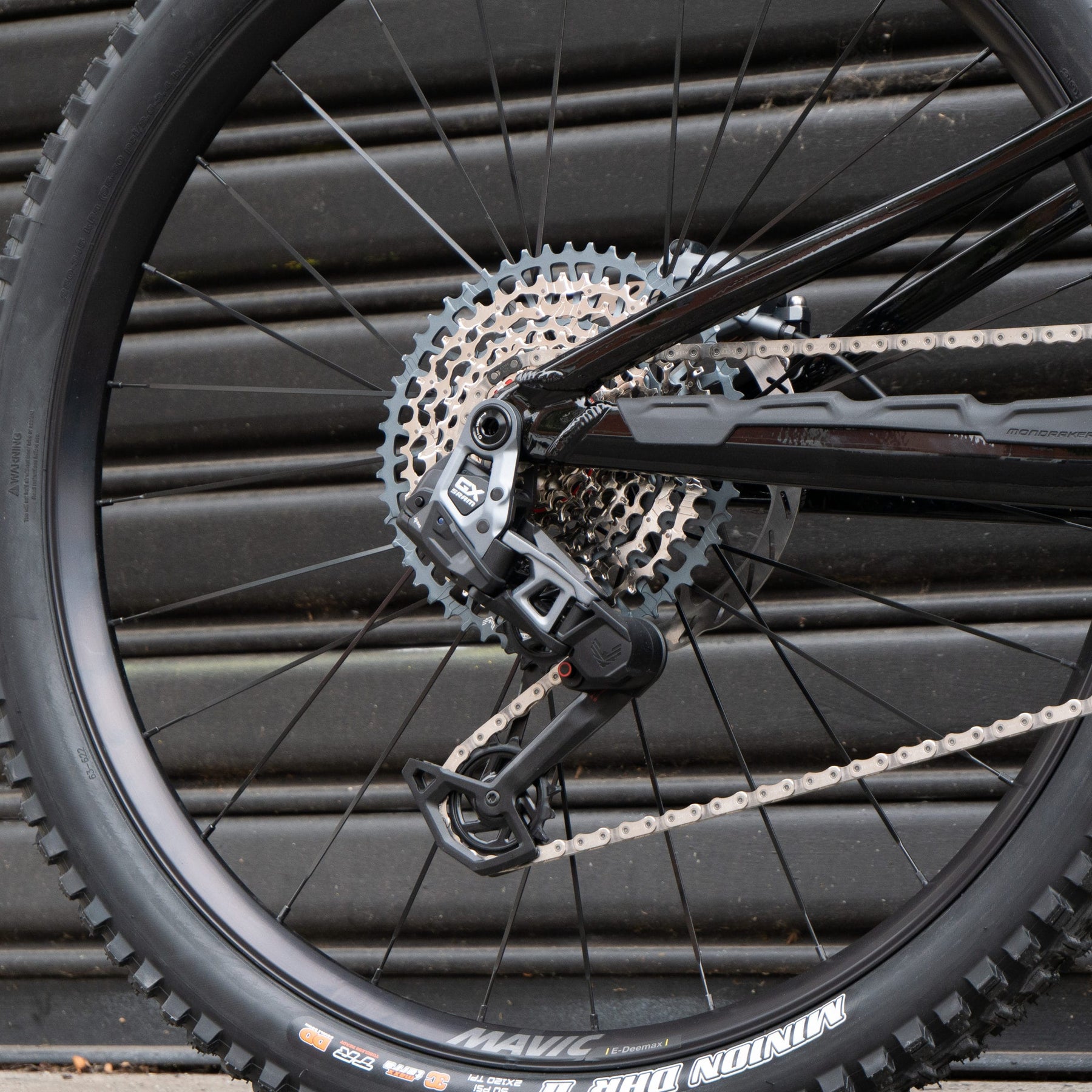

| Rear Derailleur | Sram GX Eagle AXS, T-Type, 12s |
| Shift Levers | Sram Eagle AXS Pod MMX, 12s |
| Cassette | Sram XS-1275, 10-52T, T-Type, 12s |
| Crankset | Race Face Aeffect-R ebike, 160mm (34T Sram Eagle T-Type ring) |
| Chain | Sram GX Eagle T-Type, 12s |

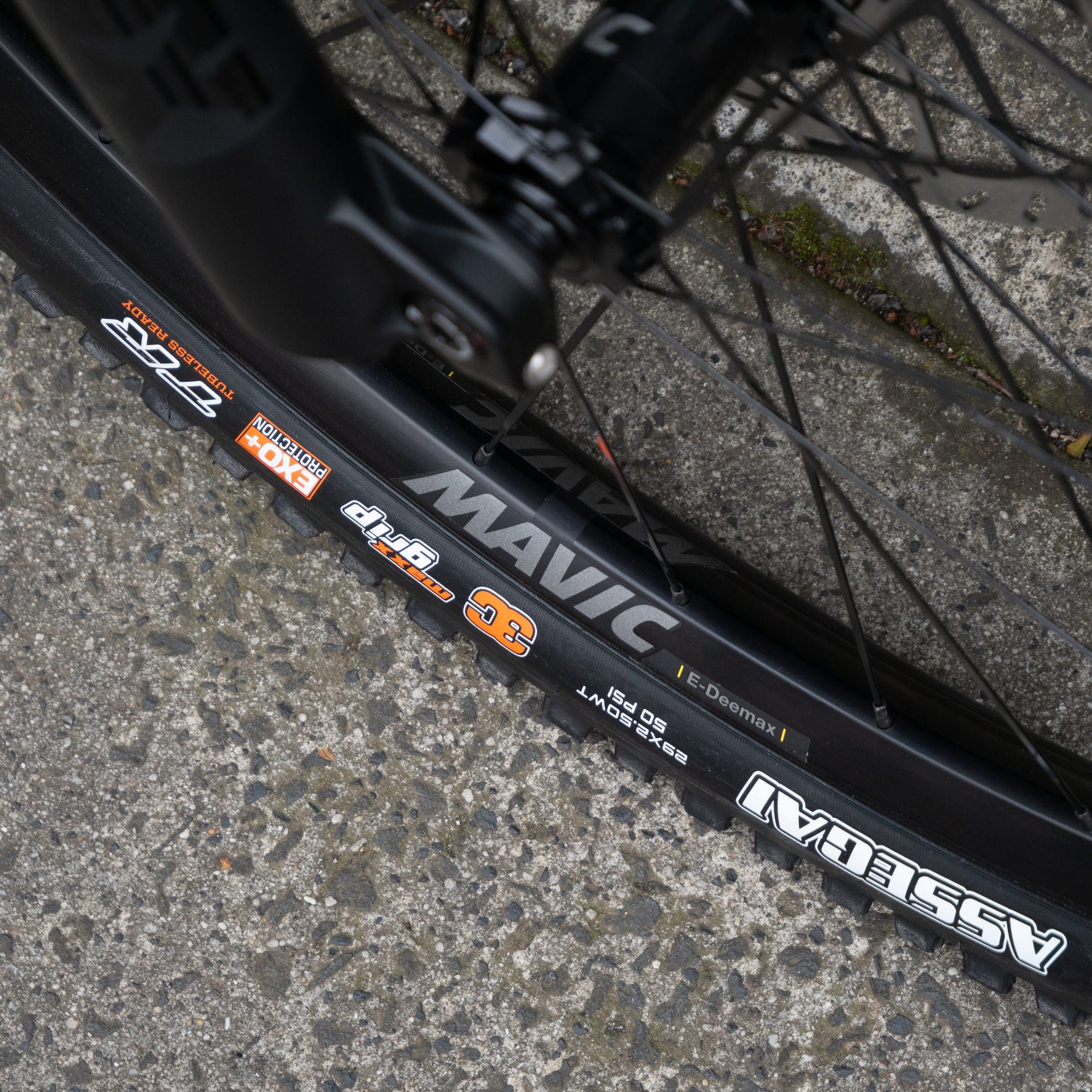

| Rims | Mavic E-Deemax 29, 30mm internal width, Tubeless Ready |
| Hubs | Mavic Boost (Front: 15x110mm / Rear: 12x148mm ID360 Ratchet), XD Freehub |
| Front Tire | Maxxis Assegai 29x2.5WT, 3C Maxx Grip, EXO+, 60TPI |
| Rear Tire | Maxxis Minion DHR II 29x2.5WT, 3C MaxxTerra, DoubleDown (DD), 120TPI |

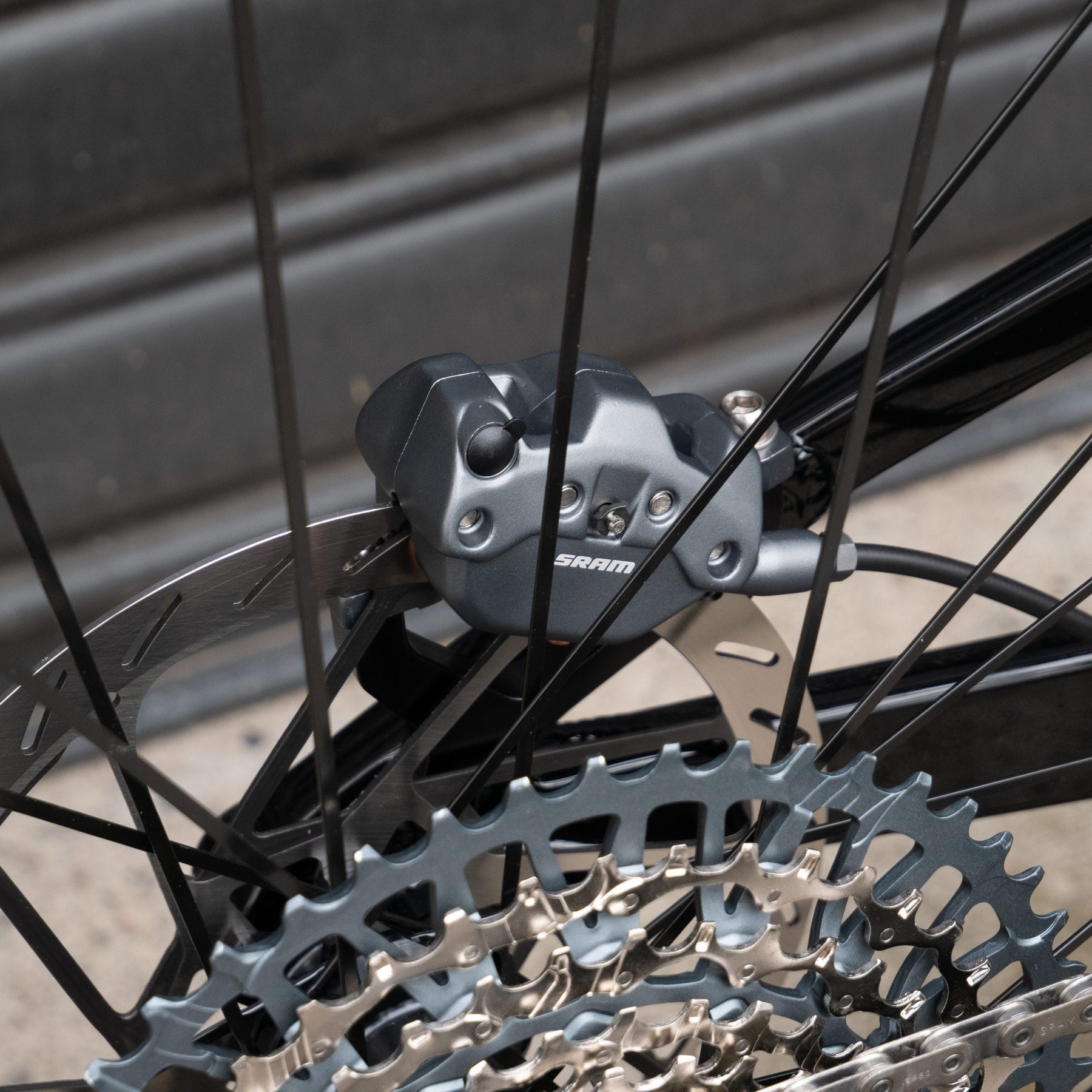

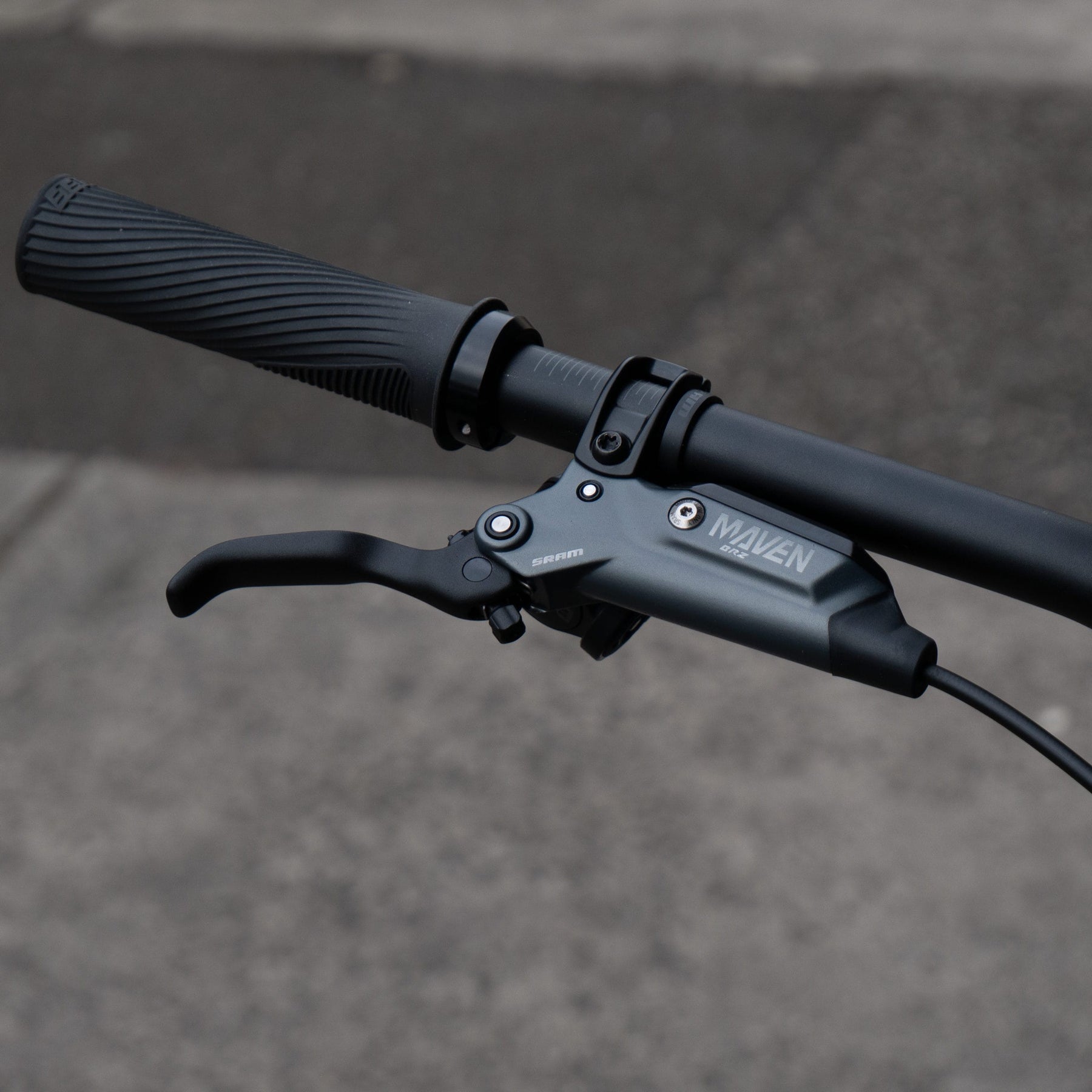

| Brakes | Sram Maven Bronze, 4-piston, 200mm HS2 Rotors (Front & Rear) |
| Handlebar | Onoff S6 1.0 7050 alloy, 800mm width, 25mm rise (38mm rise for L/XL) |
| Stem | Onoff S6 30mm 0º, 6061 forged alloy + CNC |

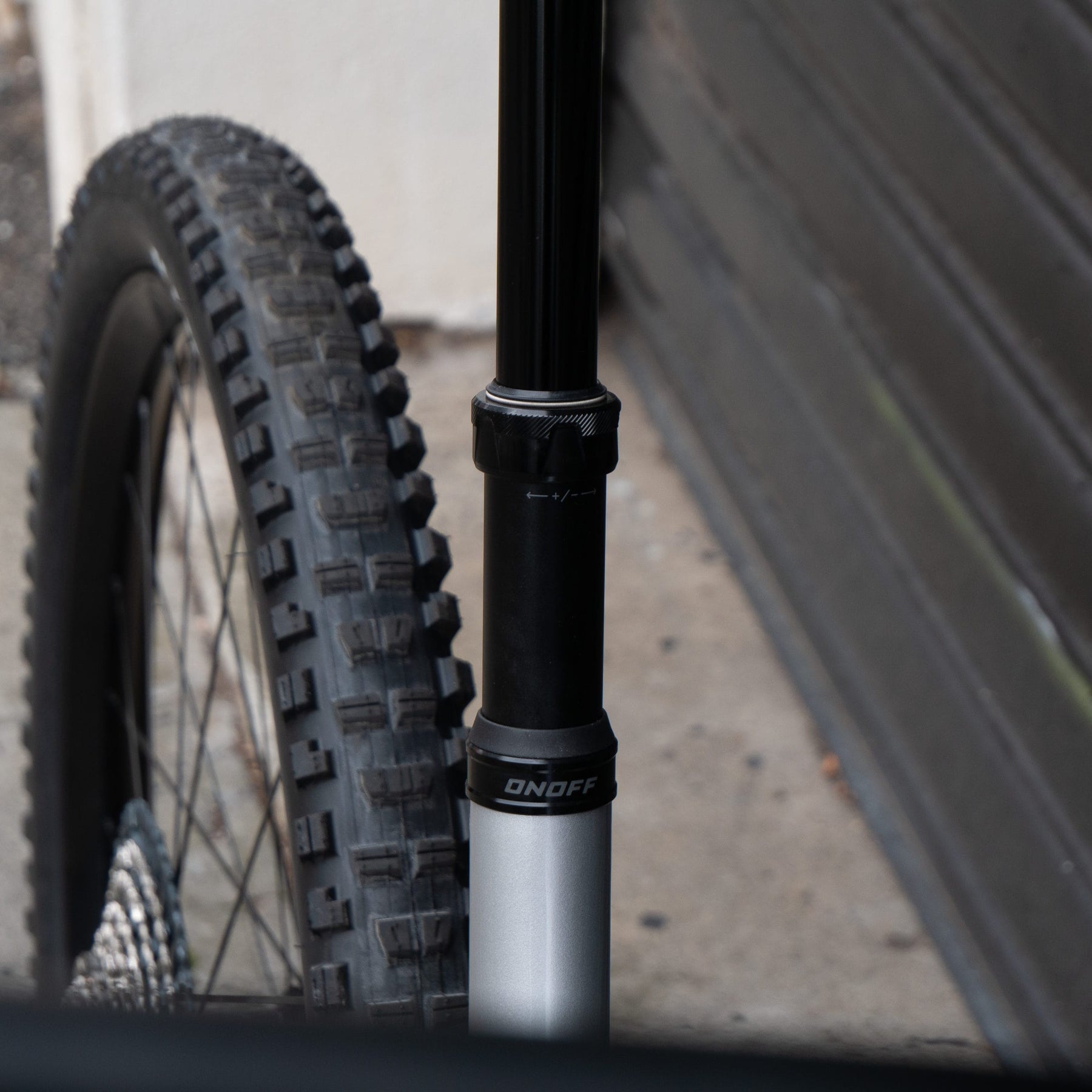

| Seatpost | Onoff Pija dropper (Travel: S: 115-140mm, M: 135-160mm, ML: 155-180mm, L/XL: 185-210mm) |

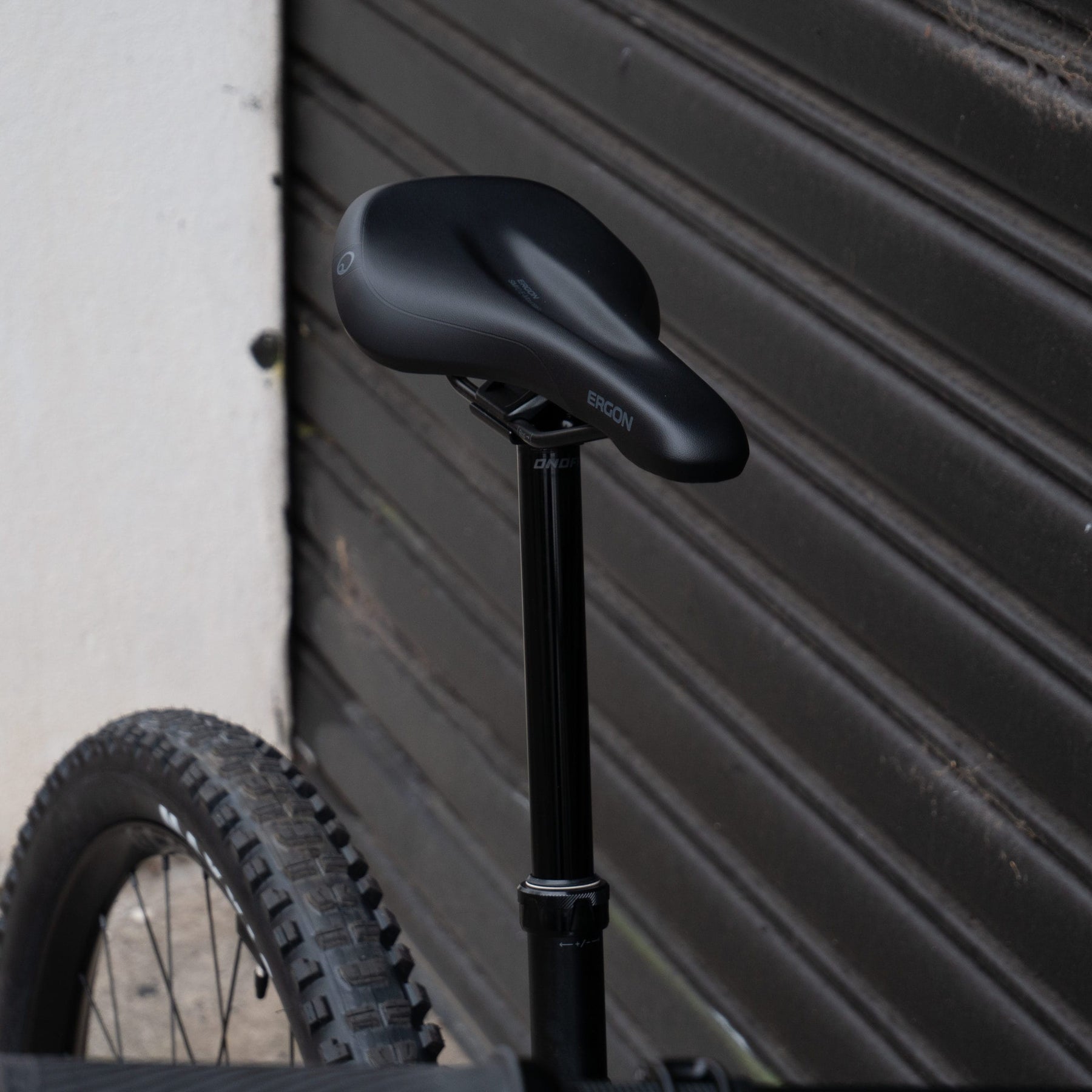

| Saddle | Ergon SM-10 |
| Weight | 24.4 kg |
